Spectrum: Long optical cross asymmetric system
Illuminance: 5-200000lx
Spectrum width (FWHM): 2NM
Spectrum resolution: 0.2nm
Sensor: CCD
Sensor array points: 3648
Zero mode: Auto zeroing
Color temperature: 1000-100000K
X,Y accuracy: ±0.001 |
At condition of luminaire A, 2856K, 10000LX
X,Y repeatability: ±0.0005 |
At condition of luminaire A, 2856K, 10000LX
Illuminance accuracy: ±4% |
At condition of luminaire A, 2856K, 10000LX
Rendering accuracy: ±1.5% |
At condition of luminaire A, 2856K, 10000LX
Integral time: 50us-20000ms
Wavelength accuracy: ±0.5nm
LCD screen: 5 inches, IPS touch screen
Wavelength interval:1nm
Resolution: 480*854
AD resolution: 16 bits, 250KSPS
Test mode: Single/continuous
Language: Chinese/English
Exposure mode: Auto/manual
File save: 8GB SD card
Spectrum display
6 parameters for option to display
Spectrum curve
Data output connector: SD Card/USB2.0
Dimension (L*W*H): 163*81*25.8mm
Data display: Up and down scroll to display all the data
Detector port: Ø 10mm
Diagram display
CIE1931 chromaticity diagram
CIE1960 chromaticity diagram
CIE1976 chromaticity diagram
SDCM diagram
CRI circular diagram
CRI histogram
Weight: 500g
Operation temperature: 0~35°C
Storage temperature: -10~40°C
continuous working hours: >10hours
Battery capacity: 4000mAh
Structure: aluminum alloy

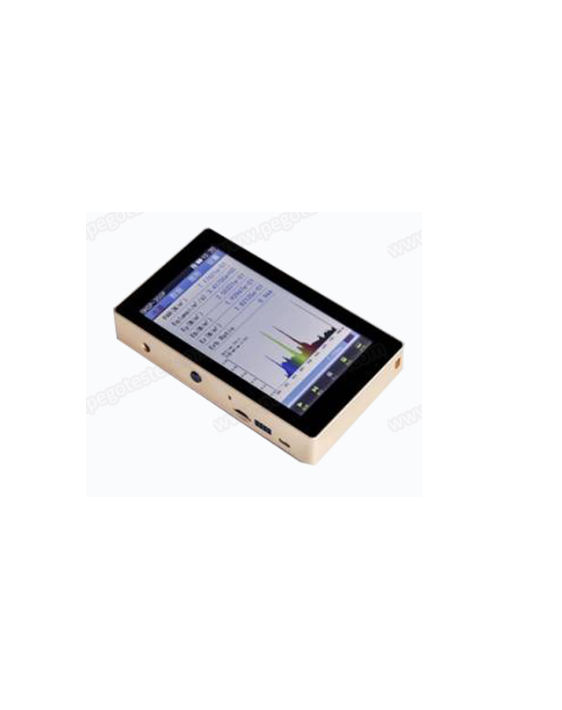

Portable Spectrum illuminance meter is an equipment integrated the test functions of spectrum, colirmetry, illumiance, radiate and etc. Adopts 5 inch LCD screen to display all kinds of parameters and curve at real time, built-in CCD sensor and advanced information processing chip to ensure the stability of the optical signal. It is easy to operate and can realize site test. This equipment can not only test LED, CFL and HID luminaires, and also can apply to the conditions of stage design, architectural lighting, grow lights and engineering application.
