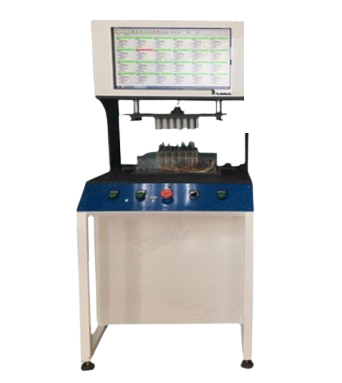

PEGO PG-2040 LED Driver ONLINE OK Tester (45Hz～5KHz, 10V～1000V, 0.005A～20A)

Test channel: 0 to 40 channels

test time for each channel:＞ 500ms

Input (AC):

Frequency range: 45Hz～5KHz

Voltage range: 10V～1000V

Current range: 0.005A～20A

Power range: 0.5W～20000W

Power test accuracy: ±(0.25% RD+0.25% FS+1 digit)

Power factor test range: 0.000～＋1.000

Power factor test accuracy:   ±(0.1% RD+0.1% FS+1 digit)

Output (DC): measuring lamp voltage, lamp current and lamp power

Voltage range: 1V～300V

Current range: 1mA～3A

Voltage test accuracy: ±0.015% RD+0.05% FS

Current test accuracy:   ±0.05% RD+0.1% FS

Power range: 0.1W～300W

Power test accuracy: ±0.2% RD+0.2% FS+1

Efficiency range: 0～100

Efficiency accuracy: ±0.5%

All the input and ouput electric pamarameters can be preset for upper and lower limit

LED driver online ok tester is a professional equipment to online inspect if the LED driver is qualified or not, equip with special fixture and intelligent software can test the input and output characters of 40 channels of LED driver, and user can preset the upper and lower limit value to make judgement at real time. Auto set up and save EXCEL data base for analysis purpose.
