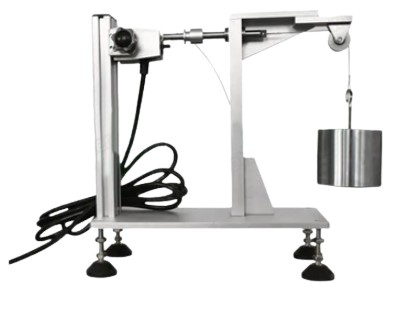

PEGO PG-PFA2 Plug Pins Fixation Verifying Test Apparatus (0.4N.m, 40N*1，20N*1，10N*1，4N*1)

Number of test station: 1

Weights for pull force test: 40N*1，20N*1，10N*1，4N*1

Torque test: 0.4N.m (Realized by 50N weight and R8mm torque wheel)

Test time: 1min (manual control)

Configuration: Equip with socket-outlet (user provide the standard sheet of socket)

Dimension and weight: W350mm*H250mm*D2500mm, 15KG

Working condition: 0-40℃，30%-90%R.H.

The plug pins fixation verifying test apparatus is designed according to IEC60335-1 clause 22.3 and IEC60065 clause 15.4.3 (b and c), it can perform both torque test and pull force test to verify the firmness of plug pins. The test apparatus should work with a heating cabinet when perform the pull force test.
