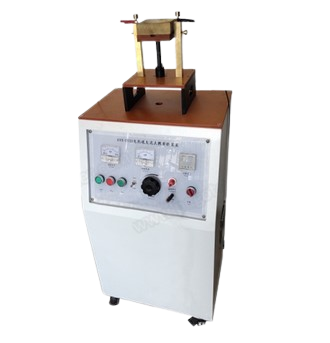

PEGO PG-SIT Spark Ignition Test Apparatus (5-12KV, Ø3mm)

Electrodes

1). Diameter: Ø3mm

2). Material: made of brass

3). Consist of a fixed electrode and a movable electrode, the angle of fixed electrode’s tip is 45°, the movable electrode has a flat end

Control way: Button control+meter

Station: Single

Test Voltage: 5-12KV

Test current: 0-2mA max.the output voltage doesn’t decrease by more than 100V when a current of 1mA is following

Timer: 0-999s

Dimension of upper mask: 100*100*10mm (aperture: Ø50mm)

Dimension of lower mask: 100*100*30mm (aperture: Ø50mm)

Mass of upper mask: 100g

Adjustable platform: 10mm-100mm (adjustable)

Dimension: 650*500*1200mm

Power Supply: 220V/50Hz

The spark ignition test apparatus meets the requirements of IEC60335-2-17 clause 30.101 and figure 112. It’s used for the flame resistance test of the flexible parts to check if the arcing of conductors will cause the sample to be overheated or burned. The test apparatus is consisted by control box and test rig, user should prepare the heating cabinet.
