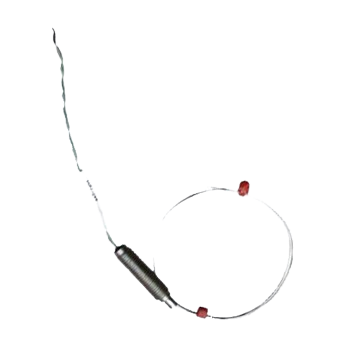

PEGO PG-TMC Ni/Cr K type Thermocouple (500mm, -40℃~1100℃)

Length: 500mm

Diameter: 0.5mm

Temperature: -40℃~1100℃

Fixation sites: M8 thread (BS)

Application: special for glow-wire test apparatus, needle flame test apparatus, horizontal and vertical flammability test apparatus, wire and cable vertical flammability test apparatus

Standard: IEC60584

Insulating and heat resistance thermocouples (443-7939, 443-7951, 443-7919, 443-7921), special for glow-wire test apparatus, needle flame test apparatus, horizontal and vertical flammability test chamber and wire cable vertical flammability test chamber. The temperature detect part is bendable stainless steel 310 sheath with excellent oxidation resistance, it is suitable for the occasion of high-voltage and corrosive medium.
