Input power: 50/60Hz±5%, 115/230VAC±10%
Output current: 3-30A (AC), constant curernt source,
resolution: 0.1A/step, accuracy: ± (2% setting value+0.02A)
Output voltage: 6V (AC), Max (measured in open circuit)
Output frequency: 50Hz/60Hz
Resistance range
0-120mΩ (>10A)/1-510mΩ(10A), resolution: 1mΩ/step
Accuracy: ± (2% reading value+1 digit)
Zero adjustment
Max 100mΩ, resolution: 1mΩ/step, accuracy: ± (2% reading
value+1 digit)
Upper limit setting
Range: 0-510mΩ, resolution: 1mΩ/step, accuracy: ± (2%
reading value+1 digit)
Test time: Range: 0.5-599.9s (0=continuous test)
Control interface
Input: TEST, RESET, WITHSTAND PROCESSING
Ouput: PASS, FAIL, TEST-IN PROCESS
Test result output method: Buzzer, LCD display, control
interface status output
No. of memory group: 5 groups
Display: LCD screen
Working condition: 0-40℃, ≤75%
R.H.
Dimension: D410mm*W290mm*H100mm
Accessories: Power cable, test wire
Safety lock: Equipped with keyboard lock function
Weight: 8.7kg
Fuse: 3.15A

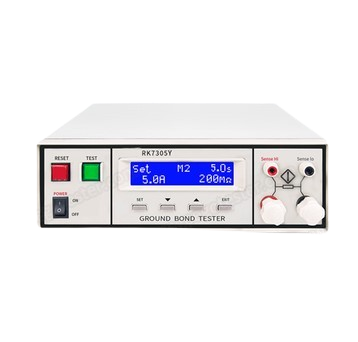

RK7305Y medical grounding resistance tester is used to measure the ground (earth) resistance inside the electrical equipment, which reflects the (contact) resistance between the exposed conductive parts of the electrical equipment and the general grounding terminal of the electrical equipment. This equipment can meet the test requirements of IEC60335-1 and IEC60601.
