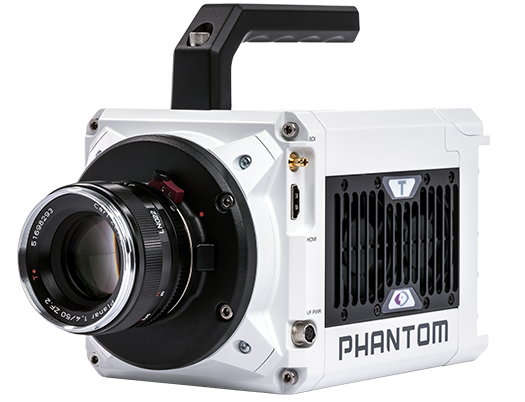

PHANTOM T2540 High Speed Camera (5,840 fps; 2560 x 1664)

Short Description:

Description: The Phantom T2540 captures up to 5,840 fps at full resolution of 2560 x 1664

Description: Binned mode combines pixels for higher frame rates with a maximum resolution of 1280 x 832

Description: FAST option is available for exposure times down to 250 ns

Throughput/Speed: 25 Gpx/second

Standard Mode Max Rate:

Frame Rate: 2560 x 1664 at 5,840 fps (full resolution)

Frame Rate: 2560 x 32 at 277,770 fps

Binned Mode Max Rate:

Frame Rate: 1280 x 832 at 23,250 fps (full binned resolution)

Frame Rate: 1280 x 64 at 277,770 fps

Maximum Frame Rate of T2540-K225: 225,000 fps

Minimum Frame Rate: 100 fps

Sensor Specifications:

Sensor Type: CMOS Back Side Illuminated (BSI) Sensor

Resolution: 2560 x 1664 pixels

Pixel Size: 9.27 µm; 18.54 µm with binning enabled

Sensor Size: 23.7 mm x 15.4 mm; 28.2 mm diagonal

Bit Depth: 12-bit

CAR: 512 x 32 increments; 256 x 64 in Binned modes

Measurement Standard: EMVA 1288 measurements at 532 nm

Standard Mode:

Quantum Efficiency: 85.4% mono; 71% color

Maximum SNR: 39.9 dB

AST (p): 28.4 mono; 37.1 color

Saturation Capacity: 9,703 e- mono; 11,733 e- color

Temporal Dark Noise: 23.7 e-

Dynamic Range: 52.0 dB

Binned Mode:

Quantum Efficiency: 82.4%

Maximum SNR: 45.4 dB

AST (p): 76.2

Saturation Capacity: 34,684 e-

Temporal Dark Noise: 62.2 e-

Dynamic Range: 54.8 dB

Output: Mono output only

Exposure:

Minimum Exposure, Standard: 1.04 µs

Minimum Exposure with FAST Option: 250 ns (export controlled)

Shutter Type: Global electronic shutter

Extreme Dynamic Range (EDR): Yes

Auto Exposure: Yes

Exposure Index (E.I.): For controlling apparent ISO

Shutter Off Mode: For PIV

Memory:

Internal RAM: 64 GB, 128 GB, 256 GB high-speed internal RAM

Memory Partitions: Up to 63

Non-Volatile Storage: CineMag 5

Record Times:

Recording Time: 6.9 seconds at maximum frame rate, 12-bit, 2560 x 1664 resolution into 256 GB internal memory

Special Features:

Ethernet: 10Gb Ethernet

Binned Mode: Double the vertical resolution at high frame rates; monochrome output

Multi-Cine Mode: Yes

Memory Segments: Up to 63

Continuous Recording: Yes

Event Marking: Yes

Frame Timestamp: Yes

IRIG In: Modulated and unmodulated

IRIG Out: Unmodulated

Sync-to-Trigger: Yes

PIV Shutter Off Mode: Yes

PIV Straddle Time: 364 ns

Burst Mode: Yes

Internal Mechanical Shutter: For automatic/remote Current Session Reference (CSR)

Network Configuration: DHCP or Secondary IP address

Firmware Upgrade: Field-based firmware upgrade capable

Triggering:

Trigger Location: Programmable; pre/post trigger recording

Image-Based Auto-Trigger: Standard

Software Trigger: Yes

Hardware Trigger: BNC

High Voltage (HV) Trigger: Compatible

Timing and Synchronization:

Timing Resolution: <20 ns

Frame Synchronization: Internal or external clock (FSYNC)

IRIG In/Out: Modulated or unmodulated

Ready Output: High when camera is armed and ready to record

Strobe Output: Low during frame exposure time

Signaling:

Dedicated Ports: Trigger, Timecode In

Remote Port: RS232

Range Data: Dedicated

Programmable I/O Ports: 3

Programmable Signals: F-sync, strobe, event, trigger output, ready and more

Connectivity:

Gb Ethernet: Yes

10Gb Ethernet: Auto-negotiating

WiFi: Via USB Dongle for control

WiFi Disable Option: Available for permanent factory disabling

Camera Control:

Control Software: Phantom Camera Control software (PCC)

On-Camera Controls: Standard

SDK: Available

Video Out:

3G HD-SDI Ports: 2

HDMI: Micro-HDMI

Video Output: Up to 1080p60

Lensing:

Standard Mount: Nikon F-mount

Lens Compatibility: F & G style lenses

Optional Mounts: Canon EOS, PL, C, M42

Lens: Not included

Video Processing:

Brightness: Yes

Gain: Yes

Gamma: Yes

Saturation: Yes

White Balance: Yes

Pedestal: Yes

Tone Curve: Yes

Filters: Yes

Color Matrix: Yes

Image Flip and Rotate: Yes

Crop: Yes

Scale: Yes

Data Acquisition:

DAQ Compatibility: National Instruments M- and X-Series DAQ modules with integrated support in PCC

Motion Analysis:

Distance Measurement: Yes

Speed Measurement: Yes

Acceleration Measurement: Yes

Angle Measurement: Yes

Angular Speed Measurement: Yes

Target Tracking: Manual and automatic point collection

Third-Party Solutions: Compatible

Supported File Formats:

Cine RAW & Cine Compressed: Supported

AVI: Supported

H.264 MP4: Supported

Apple ProRes MOV: Supported

Multipage TIFF: Supported

MXF PAL & MXF NTSC: Supported

Uncompressed QuickTime: Supported

Windows BMP: Supported

OS/2 BMP: Supported

PCX: Supported

TGA: Supported

TIFF: Supported

LEAD: Supported

JPEG: Supported

JTIF: Supported

RAW: Supported

DNG: Supported

DPX: Supported

Power:

AC Power: 100–240 VAC

Power Supply: 280 W power supply included

Secondary Power Input: 20–28 VDC, rear panel

Mechanical Specifications:

Dimensions: 5 x 5 x 8.25 inches; 12.7 x 12.7 x 21 cm (H, W, L), without handle or lens

Handle: Adds 2 inches (5 cm) to height

Weight: 9.4 lbs; 4.3 kg

Environmental Specifications:

Operating Temperature: -10 to +50 °C

Storage Temperature: -20 to +70 °C

Regulatory (EMI/EMC/ESD):

Emissions: EN 61326-1, FCC Part 15

Immunity: EN 61326-1

Shock:

Operational Shock: 30 G, 11 ms sawtooth, 3 axes, 60 pulses total

Vibration:

Operational Vibration: 7.5 Grms, 50 Hz–2 kHz, 3 axes, IAW MIL-STD-202H

Safety:

Safety Standard: IEC 60950-1

APIs:

Phantom SDK: Supported

C#: Supported

C++: Supported

LabVIEW: Supported

MATLAB: Supported

Python: Supported

Ships Standard With:

Ethernet Cable: Included

Power Supply: Included with XLR Power Cable

Options:

CineMag Interface: Optional

FAST Option: Optional

Popular Accessories:

Case with Custom Foam: Available

CineMag 5: Available

CineStation IV: Available
