PHYWE 15511-88 DEMO Advanced Physics Supplementary Set Mechanics 2 (grades 7-10)

- Function and Applications:

Supplementary equipment set for the DEMO Set Mechanics 1 (15510-88). In combination with the set Mechanics 1 another 19 demonstration experiments can be performed:

• Forces (5 experiments)

• Simple Machines (4 experiments)

• Mechanical Forms of Energy (1 experiment)

• Mechanics of Liquids and Gases (9 experiments)

- Benefits:

• Magneto-adhesive and flexible track with a reinforced front edge, which allows to set up completely unconventional track shapes for experiments on the law of conservation of energy

• Magneto-adhesive components ensure easy handling and freedom of positioning

• Secure fastening using magnets with an adhesive force of at least 10 N

• Easy marking of motions using colored arrows and points

• Liquid levels are easy to observe on the plain background

• The experiments can be modified in next to no time

• Complete equipment set in addition to Mechanics 1

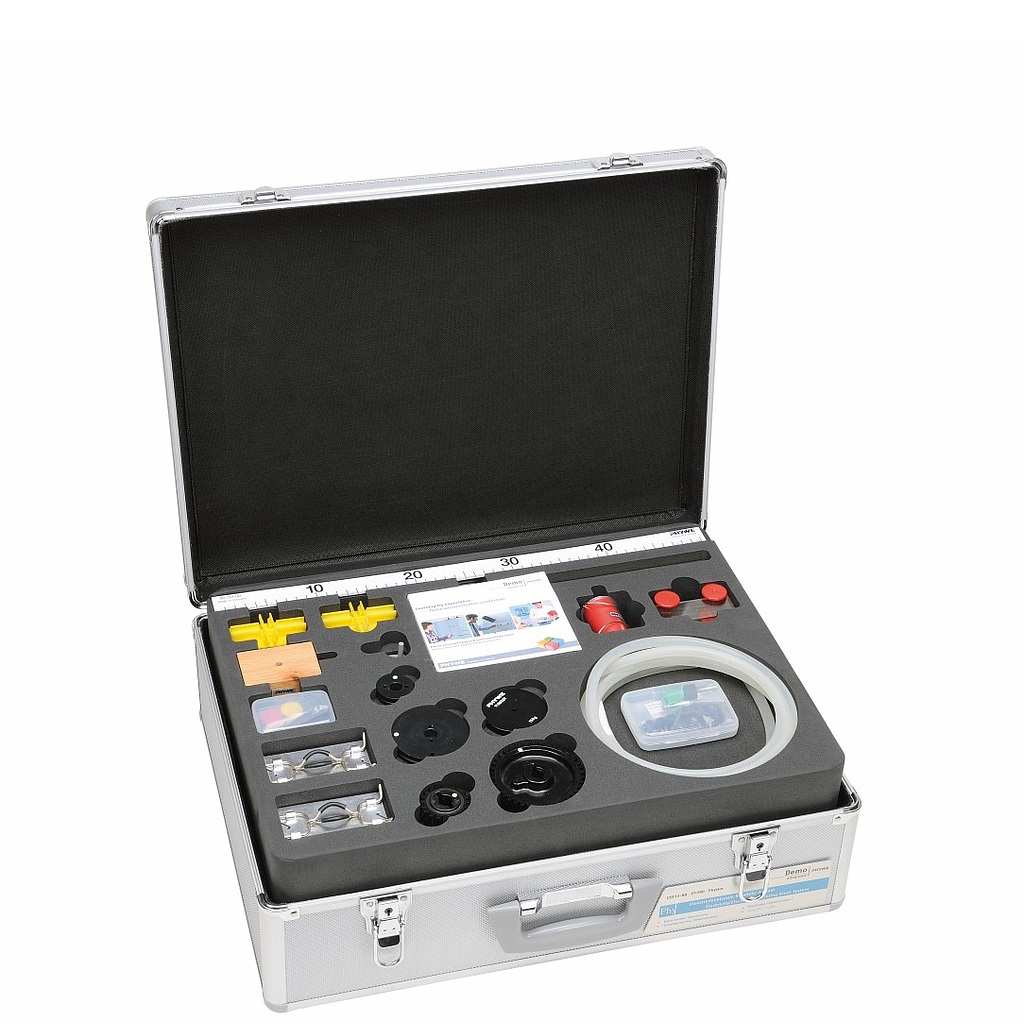

• The equipment is stored in a robust aluminum case with removable lid

• Foam insert for a quick control of completeness and secure transport of the set

• Experimenting literature for all teacher experiments are delivered as PDF documents on a DVD

• Matched with international Curriculum: all topics are covered

- Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments

• Robust storage case with foam insert fitting to the contained equipment

- Necessary accessories:

• Demo Physics board with stand (02150-00)

• DEMO advanced Mechanics 2 necessary accessories (15511-01)

• DEMO advanced Physics Set Mechanics 1 (15510-88)

• DEMO advanced Mechanics 1 necessary accessories (15510-01)

- Optional accessories:

• DEMO advanced Physics Set Linear Motion (Dynamics) (15512-88)

• Mobile Demo Lab for demonstration experiments with the a magnetic board (02190-93)

- Scope of delivery:

• Scale for demonstration board 02153-00, 1

• Leaf spring 02228-00, 1

• Friction block 2240-01, 1

• Gear wheel, 20 teeth 02350-13, 1

• Gear wheel, 40 teeth 02351-03, 1

• Axle on fixing magnet 02151-04, 2

• Weight, 150 g, for 11060.00 11060-01, 1

• Clamping holder, 0-13 mm, fixing magnet 02151-07, 1

• Marker points for demonstration board, 24 pcs 02154-02, 1

• Syringe holder on fixing magnet 02156-00, 2

• Overflow vessel on fixing magnet 02158-00, 1

• Rollercoaster track, fix.magnet 02159-00, 1

• Immersion probe 02632-00, 1

• Hollow and solid cylinder 02637-00, 1

• Glass tube holder with tape measure clamp 05961-00, 2

• Support rod, stainless steel, different lenghts | Length: 100 mm 02030-00, 1

• Silicone tubing, inner diameter 3 mm | diameter: 6 mm 47530-00, 2

• Funnel, diameter = 50 mm, plastic (PP) 36890-00, 1

• Beaker, 100 ml, plastic (PP) 36011-01, 1

• Hose clamp for 8-12 mm diameter 41000-00, 2

• Gas syringe, 100 ml 02614-00, 2

• Plunger plate for gas syringes 02618-00, 2

• Commercial weight, 500 g 44096-50, 1

• Commercial weight, 200 g 44096-20, 2

• Storage tray, 413 x 120 x 100 mm 47325-01, 1

• Nozzle for glass screwthread 43903-01, 1
