PHYWE 15550-88 DEMO Advanced Physics Set Optics

- Function and Applications:

Equipment set allowing the performance of 60 experiments about the following topics:

• Propagation of Light (7 experiments)

• Mirrors (16 experiments)

• Refraction (10 experiments)

• Lenses (13 experiments)

• Colours (6 experiments)

• The human Eye (3 experiments)

• Optical Equipment (5 experiments)

- Benefits:

• Excellent complement to identical student experiments by directly comparable devices

• Light-intense halogen lamp

• Demonstrative models of lenses

• Minimum preparation time

• Easy teaching by using the demo board for demonstration

• Complete equipment set: simple execution of the experiments

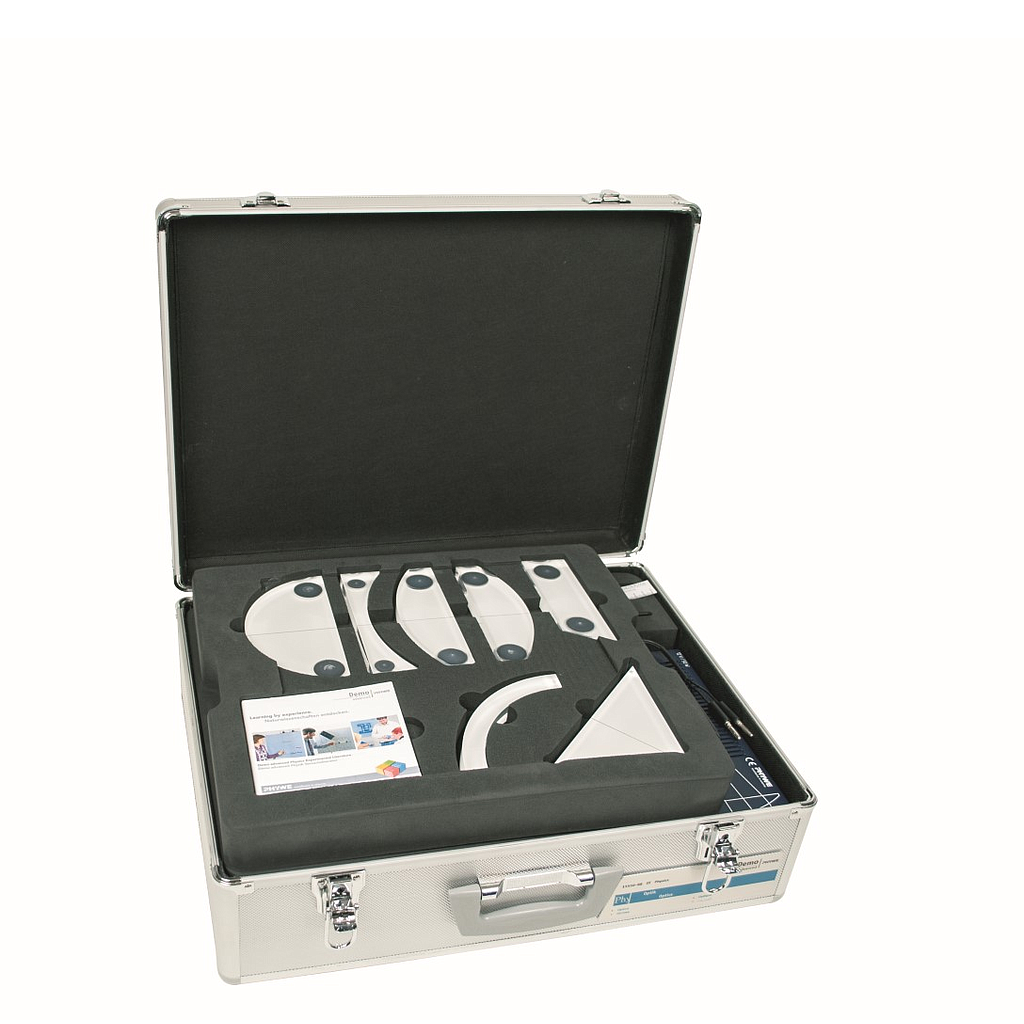

• The equipment is stored in a robust aluminum case with removable lid

• Foam insert for a quick control of completeness and secure transport of the set

• Experimenting literature for all teacher experiments are delivered as PDF documents on a DVD

• Matched with international Curriculum: all topics are covered

- Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments incl. halogen lamp with magnetic base

• Robust storage case with foam insert fitting to the contained equipment

- Necessary accessories:

• DEMO Physics board with stand (02150-00)

• DEMO advanced Optics OT necessary accessories (15550-01)

- Optional accessories:

• Mobile Demo Lab for demonstration experiments with the a magnetic board (02190-93)

- Scope of delivery:

• Optical block, semicircular, magnet held: 08270-01, 1

• Opt. block,planoconvex, magn.held: 08270-02, 2

• Opt. block,planoconcave,magn.held: 08270-03, 1

• Opt. block,trapeze, magnet held: 08270-05, 1

• Opt. block,triangular,magnet held: 08270-06, 1

• Model earth/moon, magnet held: 08270-07, 1

• Cuvette, magnet held, 230x75 mm: 08270-08, 1

• Optical disk, magnet held: 08270-09, 1

• Scale for demonstration board: 02153-00, 1

• Diaphragm w. holder, magnet held: 08270-10, 2

• Light guide model, magnet held: 08270-11, 1

• Concave/convex mirror,magnet held: 08270-12, 1

• Plane mirror, magnet held: 08270-13, 2

• Light box accessories for colour mixing: 09806-00, 1

• Colour filter set, additive (red, blue, green): 09807-00, 1

• Colour filter set, subtractive (yellow, magenta, cyan): 09808-00, 1

• Magnetic bottom for light box: 09804-10, 1
