PHYWE 15571-88 DEMO Advanced Physics Electricity/Electronics Building Block

- Function and Applications:

Supplementary equipment set for the DEMO Set Electricity (15569‑88). In combination with the set Electricity another 24 demonstration experiments can be performed:

• Transformation of Energy (1 experiment)

• Electromagnetism (6 experiments)

• Electric Motors (4 experiments)

• Induction (5 experiments)

• Transformers (3 experiments)

• Self-Induction (4 experiments)

• Safe Working with electricity (1 experiment)

- Benefits:

• Continuing experiments from the field of electricity to the topics electromagnetism and induction

• Instructional model engine with double-T armature, stator pole pieces and support surface for stator magnet

• Wiring diagram of the experiments can be completely illustrated

• Rugged magnetically adhesive -PUZZLE- blocks featuring contrasted screen-printed electric symbol on top

• The building blocks are easy to remove from experimental set-ups using the gripper rims

• Safe electric contact is guaranteed by the use of a unique puzzle block system with corrosion-free gold plated contacts

• 100-percent compatibility between teacher and student building blocks

• Complete equipment set in addition to Electricity/Electronics 1

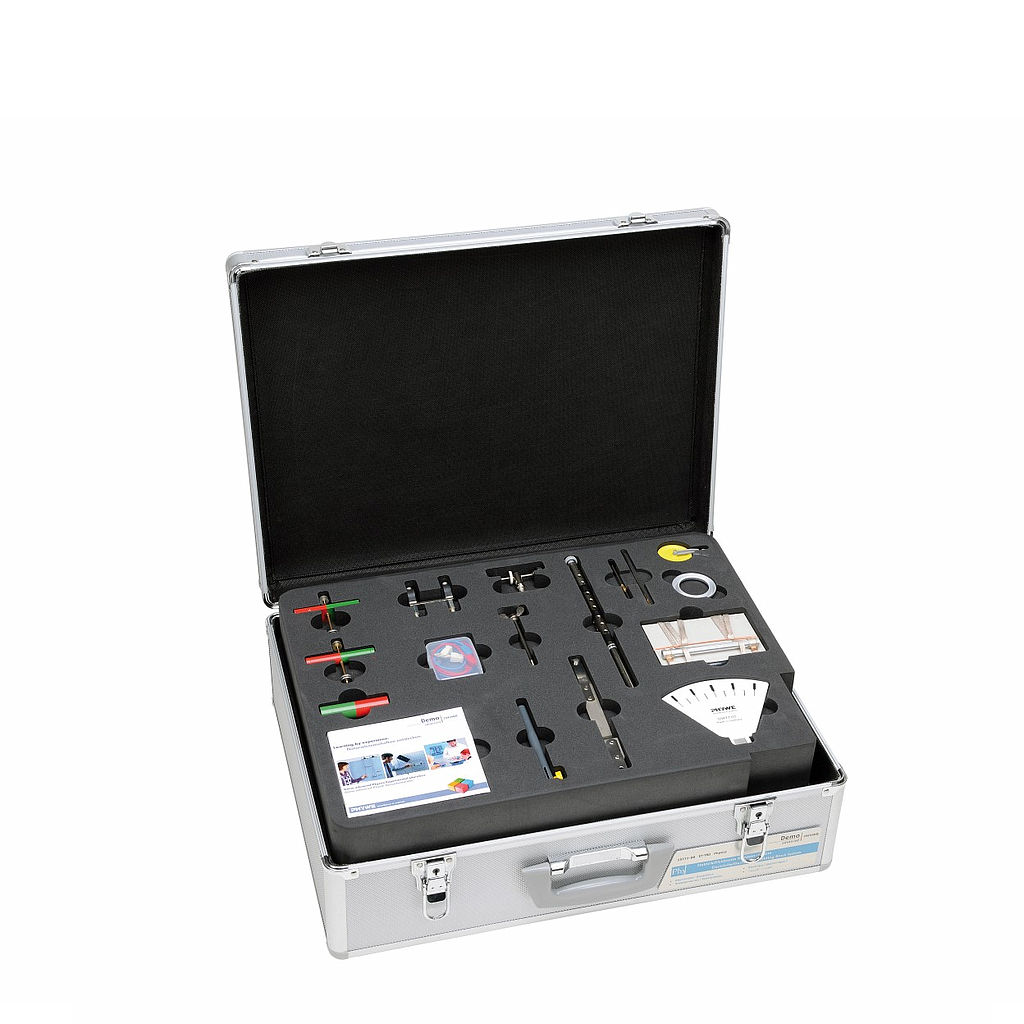

• The equipment is stored in a robust aluminum case with removable lid

• Foam insert for a quick control of completeness and secure transport of the set

• Experiment guides for all experiments provided as PDF documents

• Easy teaching and efficient learning through the digital experiment descriptions enclosed as QR codes

• Matched with international Curriculum: all topics are covered

- Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments

• Robust storage case with foam insert fitting to the contained equipment

- Scope of delivery:

• Junction, module DB: 09401-10, 2

• Wire crossing, insulated, module DB: , 9401-05, 1

• Universal holder,module DB: 09403-00, 1

• Coil 400 turns, module DB: 09472-01, 2

• Coil 1600 turns, module DB: 09472-02, 1

• Contact spring w. armature,mod.DB: 09473-00, 1

• Contact element,module DB: 09473-01, 1

• Relay 6 V, module DB: 09474-00, 1

• Motor 12 V, module DB: 09475-01, 1

• Holder for U-magnet, module DB: 09476-00, 1

• Magnet holder,d=18mm: 09476-10, 1

• Pole shoes,1 pair (18x4x70)mm: 09476-11, 1

• Coil f.galvanomtr.model,module DB: 09477-00, 1

• Scale f.galvonomtr.model,mod. DB: 09477-01, 1

• Clamp on holder: 02164-00, 1

• Holder f.electr.motor,magn.board: 07849-00, 1

• Motor model f. magnet board: 07850-20, 1

• Magn.rotor f.generator model: 07850-22, 1

• Iron core, U-shaped, laminated: 07832-00, 1

• Iron core, I-shaped, laminated: 07833-00, 1

• Tightening screw: 07834-00, 1

• Circular trough: 07835-00, 1

• Magnet, bar-shaped, d = 18 mm, l = 70mm: 06318-00, 1

• Neon lamp 110 V AC, E10: 07506-90, 1

• Insulating support, l = 235 mm: 07924-00, 1

• Conductor swing: 06412-00, 1

• Pulley,movable,dia.40mm,w.hook: 03970-00, 1

• Rod for pulley: 02263-00, 1

• Weight holder, 10 g: 02204-01, 1

• Slotted weight, silver bronze, 10 g: 02205-03, 2

• Slotted weight, silver bronze, 10 g: 02205-03, 2

• Slotted weight, silver bronze, 50 g: 02206-03, 1

• Fishing line, l. 20m: 02089-00, 1

• Magn.rotor f.electr.motor model: 07850-21, 1

- Necessary accessories:

• DEMO Physics board with stand (02150‑00)

• DEMO advanced Electromagnetism and induction necessary accessories (15571‑01)

• DEMO advanced Physics Electricity/Electronics Building Block System, electricity (15569‑88)

• DEMO advanced Electricity necessary accessories (15570-01)

- Optional accessories:

• Mobile Demo Lab for demonstration experiments with the a magnetic board: (02190‑93)

• DEMO advanced Electronics (15572‑88)
