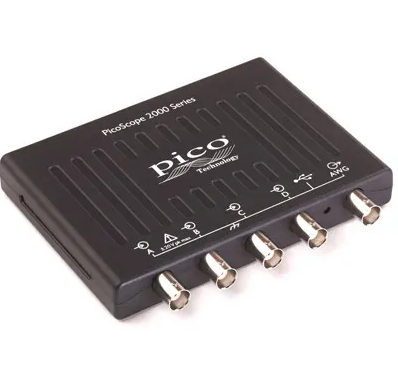

Bandwidth 25 MHz
Maximum sampling rate 500MS/s
Buffer memory 48KS
AWG bandwidth 1MHz
Bandwidth (–3 dB) 25 MHz
Rise time (calculated) 14 ns
Software lowpass filter Not applicable
Vertical resolution 8 bits
put ranges ±50 mV, ±100 mV, ±200 mV, ±500 ±1 V, ±2 V, ±5 V, ±10 V, ±20 V mV,
Input sensitivity 10 mV/div to 4 V/div (10 vertical divisions)
Input coupling AC / DC
Input connector Single-ended, BNC(f)
Input characteristics 1 MΩ ± 1% ∥ 14 pF ± 2 pF
Maximum sampling rate 1 ch.
(real-time) 2 ch.
100 MS/s
50 MS/s
quivalent-time sampling rate (ETS) 2 GS/s
Standard output signals Sine, square, triangle, DC voltage,
ramp, sinc, Gaussian, half-sine
SPECTRUM ANALYZER
Frequency range DC to analog bandwidth of oscilloscope
Display modes Magnitude, average, peak hold
Windowing functions Rectangular, Gaussian, triangular, Blackman, Blackman-Harris, Hamming, Hann, flat-top
Number of FFT points Selectable from 128 to half available buffer memory in powers of 2, up to a maximum of 1048576 points
UTOMATIC MEASUREMENTS
Scope mode AC RMS, true RMS, frequency, cycle time, duty cycle, DC average, falling rate, rising rate,
low pulse width, high pulse width, fall time, rise time, minimum, maximum, peak to peak
Spectrum mode Frequency at peak, amplitude at peak, THD dB, SNR, SINAD, SFDR,
total power, average amplitude at peak, THD %, THD+N, IMD,
Statistics Minimum, maximum, average and standard deviation
SERIAL DECODING
Protocols 1-Wire, ARINC 429, CAN, DCC, DMX512, FlexRay, Ethernet 10Base-T, USB 1.1, I²C, I²S, LIN, PS/2, SPI,
SENT, UART/RS-232 (subject to bandwidth and sampling rate of chosen oscilloscope model)
