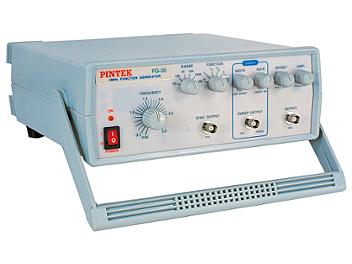

PINTEK FG-30 Function Generator (3MHz ; 6 Function , 6 Range)
1,467,648 Kyat
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
6 FUNCTION ,6RANGE
0.5Hz~3MHz
LINEAR /LOG SWEEP
20Vp-p OUT
| 1. | GENERAL SPECIFICATIONS: | |
| Frequency: | 0.5Hz ~ 3MHz in 6 steps, controlled by rotary switch. | |
| Output Waveform: | Sine, Square, Triangle, Ramp, Positive Pulse and Negative Pulse; 6 waveforms total. | |
| Stability: | 0.1% - 15minutes after power-on. | |
| 0.2% - 24hrs after power-on. | ||
| DC Offset: | Continuous Adjustment, ?10V at no-load or ?5V at 50 load. | |
| Limits of Operation: | 0℃~40℃,10~80%R.H. | |
| Storage Environment: | -20℃~70℃,0~90%R.H. | |
| Power source: | AC 115V (±10%)50/60HZ,FUSE:600mA | |
| AC 230V (±10%)50/60HZ,FUSE:300mA | ||
| Power Consumption: | 25W | |
| Dimensions: | 27.5 x 9.0 x.30.0 cm | |
| Weight: | 2.5Kg Net. | |
| Accessory: | Power cord, manual. | |
| 2. | RAMP WAVE: | |
| Frequency: | 0.5Hz - 2.5MHz | |
| Symmetry: | 80% (rise wave) to 20% (fall wave), < 5%, 1Hz ~ 100KHz. | |
| Rise Wave Linearity: | < 2%, 1Hz - 100KHz. | |
| 3. | TRIANGLE WAVE: | |
| Frequency: | 0.5Hz - 3MHz. | |
| Symmetry: | 50% (rise wave) to 50% (fall wave), < 2%, 1Hz ~ 100KHz. | |
| Linearity: | < 1%, 1Hz ~ 100KHz. | |
| 4. | SINE WAVE: | |
| Frequency: | 0.5Hz ~ 3MHz. | |
| Distortion: | < 2%, 1Hz ~ 100KHz. | |
| Harmonic Ratio: | < 30dB, 100KHz ~ 3MHz. | |
| Frequency Response: | < 0.1dB up to 100KHz. | |
| < 1dB 100KHz to 3MHz. | ||
| 5. | SQUARE WAVE: | |
| Frequency: | 0.5Hz ~ 3MHz. | |
| Symmetry: | 50% (positive half) to 50% (negative half), < 2%, 1Hz ~ 100KHz. | |
| Rise Time: | < 60ns. | |
| 6. | POSITIVE PULSE: | |
| Frequency: | 0.5Hz ~ 2.5MHz. | |
| Width: | 0.4sec ~ 100ns continuous adjustment. | |
| Symmetry: | 20% to 80%, < 5%, 1Hz ~ 100KHz. | |
| Rise Time: | < 60ns. | |
| 7. | NEGATIVE PULSE: | |
| Frequency: | 0.5Hz ~ 2.5MHz. | |
| Width: | 0.4sec ~ 100ns. | |
| Symmetry: | 80% to 20%, < 5%, 1Hz ~ 100KHz. | |
| Fall Time: | < 60ns. | |
| 8. | MAIN OUTPUT: | |
| Output Impedance: | 50Ω, < 2% Accuracy. | |
| Max. output: | 20 Vp-p (No load), ±1V | |
| 10 Vp-p (50Ω load),±0.5V | ||
| Min. output: | 0.1Vp-p (No load) and 0.05V (50Ω load) | |
| Attenuator: | one -20dB switch, < 2% Accuracy. | |
| 9. | SYNCHRONOUS OUTPUT: | |
| Output Impedance: | 50Ω, < 2% Accuracy. | |
| Output Level: | TTL level, > 3Vp-p fixed amplitude. | |
| Fanout: | > 20. | |
| Rise Time: | < 30ns. | |
| 10. | VCF INPUT: | |
| Input Impedance: | 0 ~ 10V. | |
| Input Frequency: | DC ~ 1KHz. | |
| Input Frequency Variance: | 1:1 to 1:1000. | |
| 11. | SWEEP SYNCHRONOUS OUTPUT: | |
| Output Impedance: | 1KHz, < 20%. | |
| Output Waveform: | Linear or Log Sweep Ramp Wave. | |
| Output Amplitude: | 10Vp-p (No load) or 5Vp-p (1KΩ load) | |
| Output Frequency: | Continuous adjustment, 0.2Hz ~ 100Hz. | |
| 12. | SWEEP GENERATOR: | |
| Sweep Form: | Linear or Log switchable. | |
| Sweep Speed: | 5sec ~ 10ms, continuous adjustment. | |
| Sweep Width: | 1:1 ~ 1:100 | |
