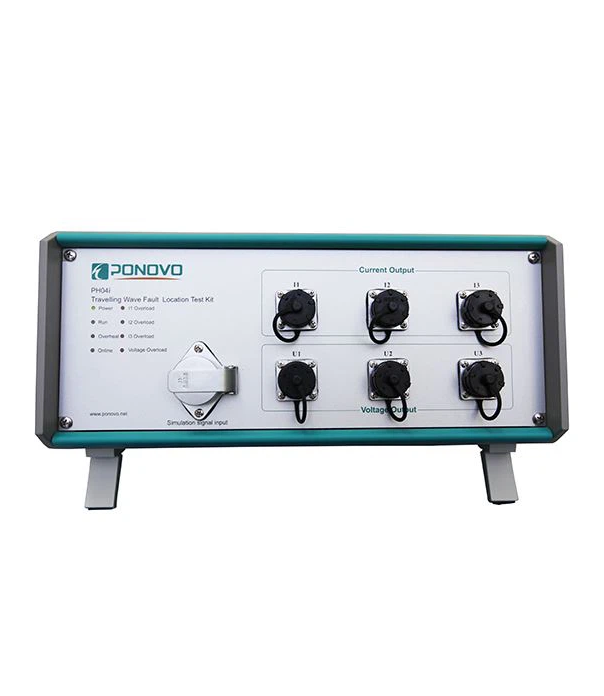

Ponovo PH01 Travelling Wave Fault Location Test Kit (AC; 3 x 15A)

Type: AC

High speed current/ voltage channel: 3 x 15A

Size (W x H x D): 360 x 150 x 404 mm

Weight: 16 kg

High speed current source

Output channel: 3 or 6

Current parameter: instantaneous maximum value is 15A; the short time output current RMS is 10A; continuous output current RMS is 5A

Rated power: 60VA for single channel

Amplitude accuracy (test waveform is 50Hx since wave, PH01/PH02/PH04)

Waveform RMS range: 0.5 ≤ 1 ≤ 10A, accuracy ≤ 0.5%

Waveform RMS range: 0.1 ≤ 1 ≤ 0.5A, accuracy ≤1% ± 1mA

Amplitude-frequency characteristics: 0Hz ~ 500KHz (3dB bandwidth)

High speed voltage source

Output channel: 3

Voltage parameter: instantaneous maximum value is 150V the continuous output voltage RMS is 100V

Rate power: 6VA for single channel

Amplitude accuracy: <0.5%

Amplitude-frequency characteristics: 10Hz ~ 500KHz (3dB bandwidth)

Amplifier current output transient characteristics: output rise and fall time is 1µs, 60V trapezoidal wave voltage, positive and negative overshoot <10%

Protective function:

Current open circuit protection, voltage short circuit protection and alarm

Power supply: AC 110V ~ 220V; 50Hz/60Hz

Output synchronization

Synchronization error of one device's different channels is not more than 0.2µS

Two devices are synchronized by GPD sub-pulse and quick binary input, and the synchronous error is not more than 0.5µS
