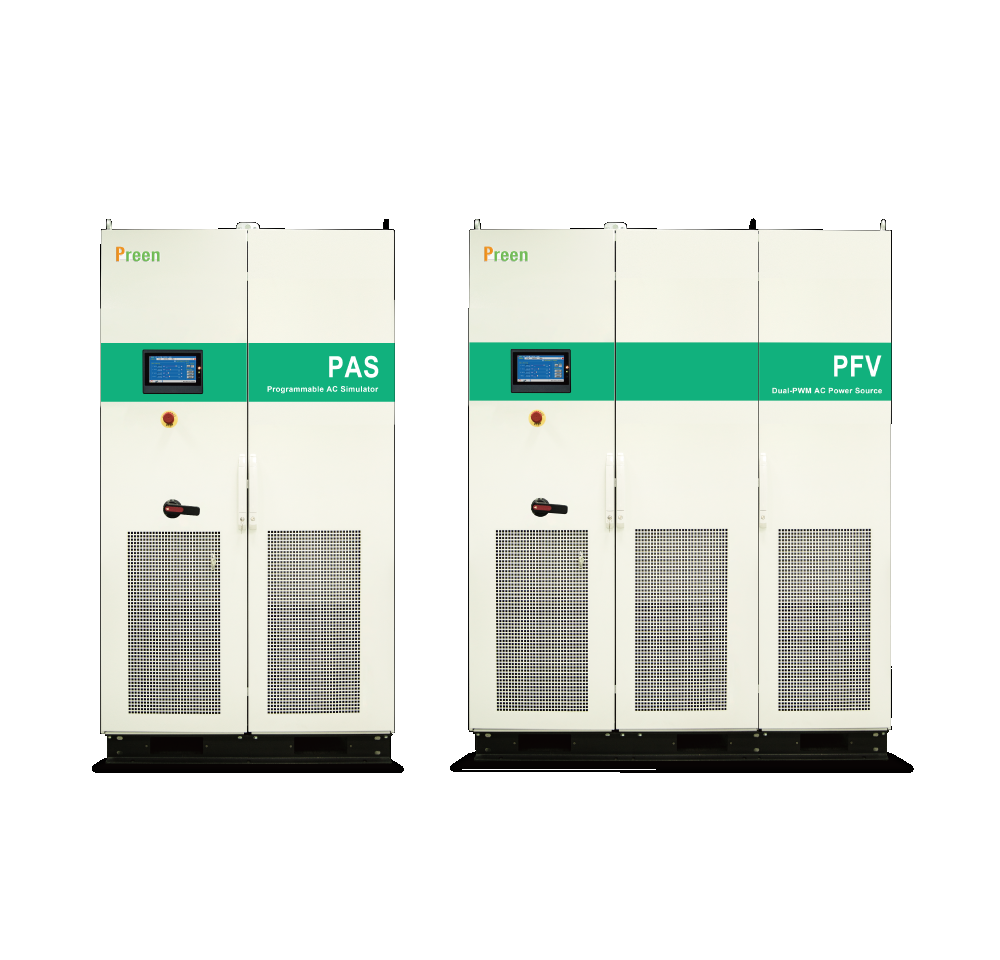

Preen PFV-33045 Regenerative Grid Simulator (88.1A; 45kVA)

INPUT

Phase: 3Ø / 3 Wire + G

Voltage*1: 380V±15%

Frequency: 47-63Hz

Max. Current*2: 88.1A

Power Factor: ≥0.99(Max. Power)

OUTPUT

Power (VA:) 45kVA

Phase: 3Ø / 4 Wire + G

Voltage Ranges PFV Series: Low(V): 0V-150.0V(L-N); High(V): 0V-300.0V(L-N)

Voltage Ranges PAS-F Series: 0V-300.0V(L-N)

Voltage Resolution: 0.1V

Voltage Accuracy: 0.15% F.S.+4 counts

Frequency Range: Standard : 45-65Hz Option : 40-70Hz

Frequency Resolution: 0.1Hz

Frequency Accuracy: ±0.1% F.S

Max. Current (RMS) PFV Series: Low(A): 125A; High(A) 62.5A

Max.Current(RMS) PAS-F Series: 62.5A

Line Regulation: ≤ 1%

Load Regulation: ≤ 1% (Resistive Load)

Total Harmonic istortion(THD): ≤ 2% (Resistive Load)

Response Time: ≤ 2ms

Crest Factor :≥ 3

MEASUREMENT

Voltage Range: 0V-300.0V

Voltage Resolution: 0.1V

Voltage Accurac:y 0.1%F.S.+2counts

Frequency Range: Standard : 45 ~ 65Hz Option : 40-70Hz

Frequency Resolution: 0.01Hz

Frequency Accuracy: ±0.01% F.S

Current Range(RMS): 0-9999A

Current Resolution(RMS): 0.1A

Current Accuracy(RMS): 0.1% F.S.+2 counts

Power Range: 0-1000kW

Power Resolution: 0.1kW

Power Accuracy: 0.2% F.S.+2 counts

GENERAL

Regenerative Function: YES

Low Voltage Ride Through(LVRT); High Voltage Ride Through(HVRT): NO

Three-phase independent adjustment: YES

Phase Angle Setting:YES

Efficiency: ≥ 92% at Max. Power

HMI: Touch Screen: 7" Color TFT LCD

Remote Interface: Standard : RS-485, RS-232 Option : GPIB, Ethernet, USB

Operating Temperature: 0ºC ~ 45ºC

Humidity: 0~90% ( Non condensing )

Altitude: < 1,500m

Dimensions (H x W x D)*3: 2000 x 1200 x 800mm /78.74x 47.24 x31.49 inch

Weight: 1000kg/ 2200lbs

*1 Please contact for other voltage specification.

*2 The rated input voltage is 380V.

*3 Including wheels.

* All specifications are subject to change without notice.
