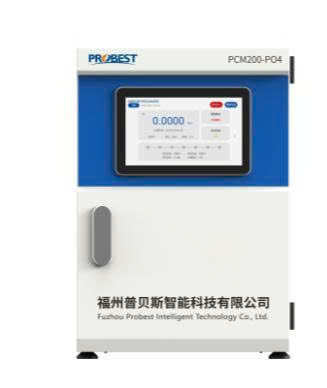

Probest PCM200-PO4 Orthophosphate water quality online automatic monitor (P: 0–10 mg/L, PO₄: 0–30 mg/L)

Range: 0-10 mg/L, in P (customizable)

0-30 mg/L, in PO4 (customizable)

Indication error: ≤±5% or ≤±0.005mg/L the bigger one

Detection limit: ≤0.01mg/L

Lower limit of quantification: ≤0.02mg/L

Repeatability: ≤2%

Resolution: 0.0001mg/L（Decimal places can be set from 2 to 4 digits）

Measurement cycle: 23 minutes

Display: 7-inch touch-screen

Measurement mode: Continuous mode, periodic mode (1h-30d adjustable), fixed-point mode, controlled mode, manual mode optional

Calibration mode: Manual calibration and automatic calibration modes

Maintenance cycle: Usually once a month

Power supply: 220VAC±10%，50HZ±10%

Output: 4-20mA outputs

Communication method: MODBUS RS-232、RS-485

Environmental conditions: Indoor(temperature adjustable), recommended temperature: +5-40 ℃ ; humidity ≤85% (no condensation)

Dimensions: 302*271*462mm（L*W*H）

Application: Online monitoring of orthophosphate in drinking water and surface water

Online monitoring of orthophosphate in municipal sewage outlets, pollution source discharge outlets, industrial wastewater outlets, secondary sedimentation tanks, and high-efficiency sedimentation tanks.
