Manufacturer: Prodigit Electronics - Taiwan

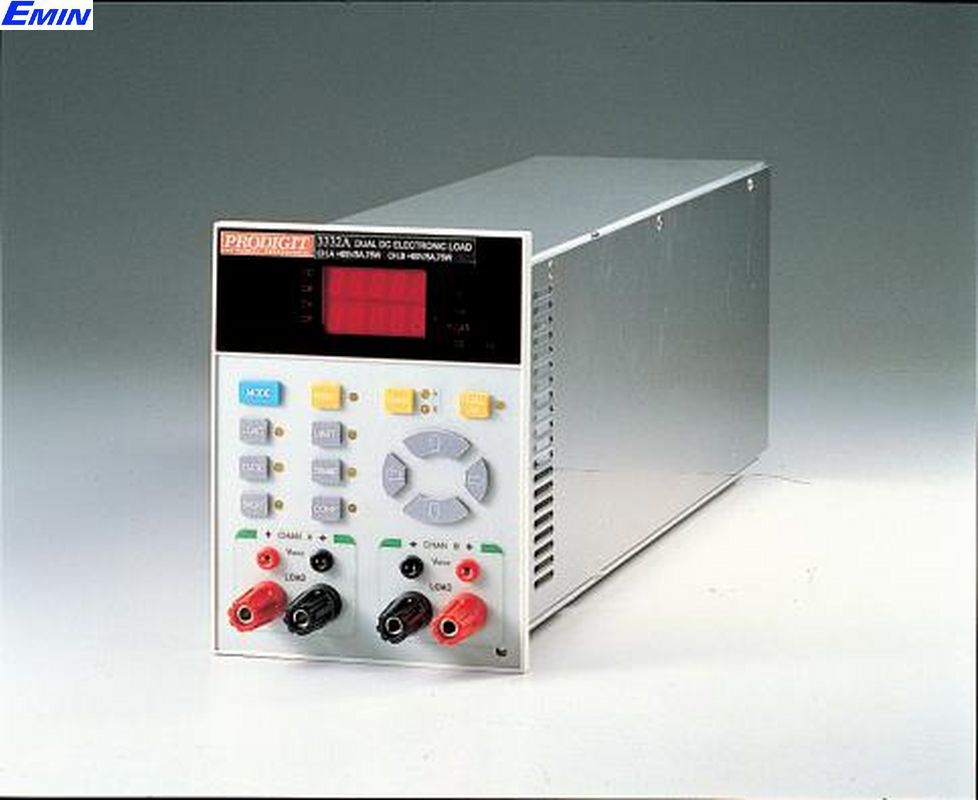

Model: 3332A
Warranty: 12 months
Power input : 2x75W
Current input : 5A
Voltage input CH A: +60V
Voltage input CH B: +60V
Display: V, A, W
Option mainframe:
- 3302C: Mainframe for single load module, with RS232C, 150 Store/Recall Memory W/O GPIB
- 3302C(GPIB) : Mainframe for single load module, with RS232C, 150 Store/Recall Memory with GPIB
- 3300C: Quad module mainframe with RS-232C, 150 Store/Recall Memory W/O GPIB
- 3300C (GPIB): Quad module mainframe with RS-232C, 150 Store/Recall Memory with GPIB
- 9801B: Application software for 3300C (150 Memory & Auto-test settings)
Mainframe: 3302C
Mainframe: 3300C
Feature
- Dual load on one load module
- CC, CR, CV, Dynamic, Short Mode
- Dual 4 1/2 V / A Meter on each module
- OCP Test
- V, A, value of dual load can be display simultaneously
- Can be configured in 3302C or 3300C with 150 states memory Store/Recall
- Protections against V, I, W, and T
Description
- 3330A series Dual Load Module has two Electronic Load which are used with the 3302C single to have 2 load modules and 3300C 4ch Mainframe to have 8 load module.
- Each 3330A Series Module has its own control and display panel, CC/CR/CV/Dynamic modes, 150 states Store/Recall memory which provides load set-up more efficiently.
- Programmable Load ON/OFF voltage, GO/NG meter check is suitable for various applications
- 3335A (+500W) & (+50W) Dual Load Module has two Electronic Load, which are used with the 3300C mainframes, but can not be used with the 3302C single mainframe due to 2 load module occupation.
