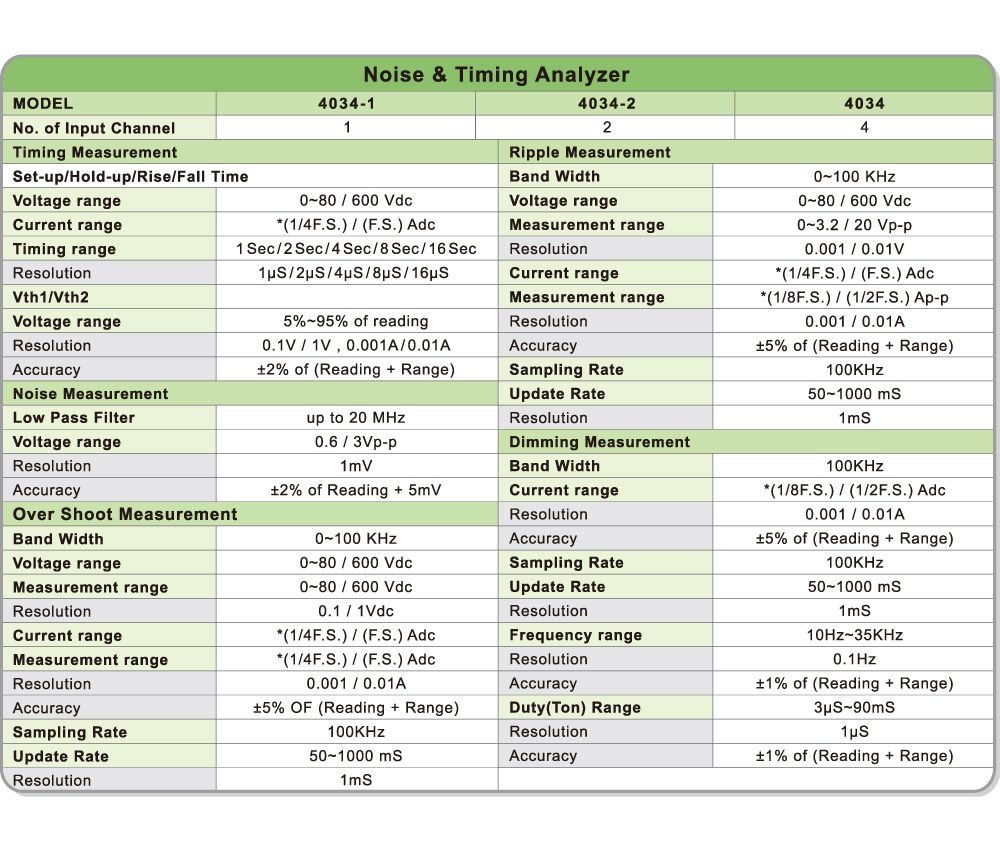

No. of input channel: 1
Timing Measurement
Voltage range: 0~80/600 Vdc
Current range: *(1/4F.S.)/ (F.S) Adc
Timing range: 1µs/2µs/4µs/8µs/16µs
Noise measurement
Low Pass Filter: up to 20 MHz
Voltage range: 0.6 / 3Vp-p
Over Shoot Measurement
Band Width: 0 - 100 KHz
Voltage range: 0-80/600Vdc
Measurement range: 0-80/600Vdc
Resolution: 0.01 /0.1Vdc
Current range: *(1/4F.S.)/ (F.S) Adc
Measurement range: *(1/4F.S.)/ (F.S) Adc
Resolution: 0.001/0.01A
Accuracy: ±5% of (Reading + Range)
Sampling Rate: 100KHzv
Update Rate: 50-1000 ms
Resolution: 1mS
Ripple Measurement
Band Width: 0 - 100 KHz
Voltage range: 0-80/600Vdc
Measurement range: 0-3.2/20Vp-p
Resolution: 0.01 /0.1V
Current range: *(1/4F.S.)/ (F.S) Adc
Measurement range: *(1/4F.S.)/ (F.S) Adc
Resolution: 0.001/0.01A
Accuracy: ±5% of (Reading + Range)
Sampling Rate: 100KHzv
Update Rate: 50-1000 ms
Resolution: 1mS
Dimming Measurement
Band Width: 100 KHz
Current range: *(1/8F.S.)/ (1/2F.S) Adc
Sampling Rate: 100KHzv
Update Rate: 50-1000 ms
Frequency Range: 10Hz~35KHZ
Duty(ton) Range: 3uS~90mS
Resolution: 1uS
