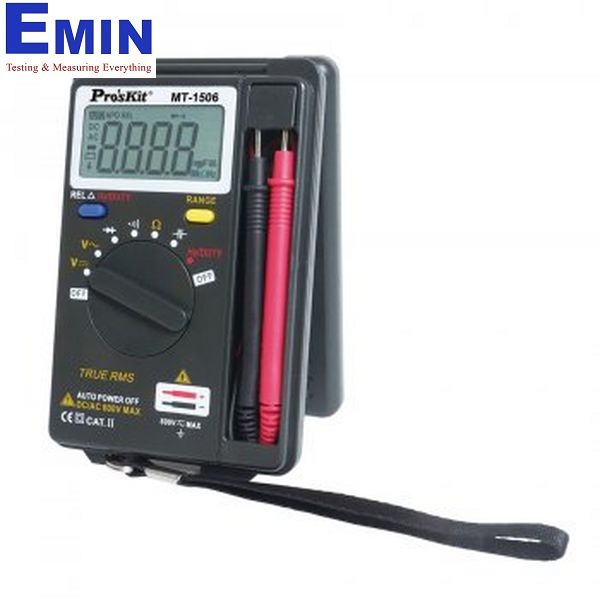

Proskit MT-1506 Pocket True-RMS Auto Range Multimeter (400mV/4/40/400V/600V)
Manufacturer: Proskit Model: MT-1506 Origin: Taiwan Guarantee: 12 Month - Contact
| Specifications | MT-1506 |
| DCV | 400mV,4/40/400V ±(0.5%+4d), 600V ±(1%+4d) |
| ACV | 400mV±(1.5%+6d), 4/40/400V ±(0.8%+6d), 600V ±(1.0%+6d) |
| Resistance | 400Ω ±(0.8%+5d) 4k/40k/400k/4MΩ ±(0.8%+4d), 40MΩ ±(1.2%+5d) |
| Frequency | 100/1000Hz/10k/100k/1MHz/10MHz ±(0.5%+4d) |
| Capacitance | 4nF ±(5%+40d), 40n/400n/4µ/40µ ±(3.5%+8d), 2000µF ±(5%+8d) |
| Duty cycle | 0.1~99.9% ±(0.5%+4d) |
| Continuity with beeper | 50 ±30Ω |
| Diode test | Range: 0 ~ 1.5V Resolution: 1mV |
| Power source | 2 x 1.5V AAA battery (Not included) |
| Size | 4.9 x 3.1 x 0.8" |
| Individual packing | Color box |
