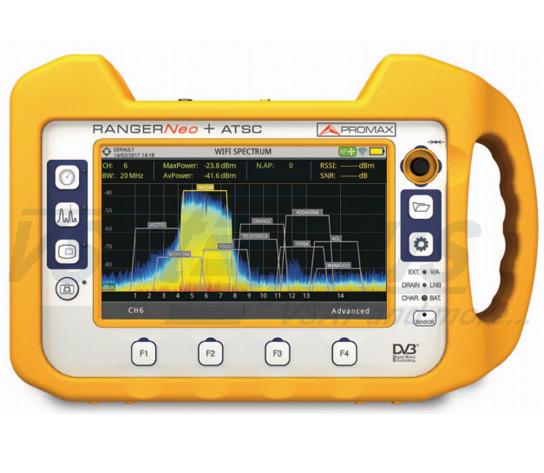

Promax RANGERNeo + ATSC Advanced multifunction field strength meter and spectrum analyzer

DIGITAL BROADCAST STANDARDS:

                           ATSC

                           DVB-C, QAM Annex B

                           DVB-S, DVB-S2

                           DVB-S2 Multistream

                           DSS, ACM / VCM / CCM

                           DAB, DAB+ (optional)

AUDIO CODECS: MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus

VIDEO CODECS: MPEG-2, MPEG-4 / H.264, HEVC / H.265

INPUTS AND OUTPUTS:- Universal RF input 75 Ω

                   - HDMI output

                   - IP input for remote control

                   - Analogue Video/Audio input

                    - 2xUSB (Type-A) for data transfering

FUNCTIONS:Constellation diagram

          LTE ingress test

          Dynamic echoes analysis

          StealthID (instant identification of tuning parameters)

          PLS (Physical Layer Scrambling)

          Screenshots and Datalogger for

          Service recording

          Ultra fast spectrum analyzer (70 ms sweep time

          measurement reports

          Field strength measurement

          Beacon-Flyaways for SNG & VSAT

          Task planner

          4K Frame grabber

          Wideband LNB

          MAX and MIN hold

          WiFi 2.4 GHz

          FM RDS radio measurement and decoding

          LTE 1.8 GHz

          OTT

          Spectrogram

          Signal monitoring

          Remote control (webControl

          MER by carrier

          Video/Audio Streaming

          SCAN + TILT

          Shoulder attenuation

 SPECTRUM ANALYZER

Frequency Margin: From 5 - 1000 MHz (Terrestrial)

From 250 - 2500 MHz (Satellite)

Measurement range Span : From 10 - 130 dBµV

                         Full / 500 / 200 / 100 / 50 / 20 / 10 MHz

Resolution bandwidths:100, 200 kHz

                      1 MHz

MEASUREMENT MODE (please refer to STANDARDS section)

Frequency Margin: From 5 - 1000 MHz (Terrestrial)

                :  From 250 - 2350 MHz (Satellite)

DVB-T COFDM :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

DVB-T2 Base and Lite COFDM: Power (35 to 115 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, LDP iterations, Wrong packets

DVB-C QAM: Power (45 to 115 dBμV), BER, MER, C/N, Link margin

DVB-C2 COFDM: Power (45 to 115 dBμV), CBER, MER, C/N, LBER, BCH ESR, LDP iterations, wrong packets

PAL, SECAM and NTSC: M, N, B, G, I, D, K and L

FM radio :Level measurement

DVB-S QPSK: Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin

DVB-S2 QPSK, 8PSK, 16/32APSK: Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin

DSS QPSK :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

INTERNAL STORAGE: 6 GB for measurement protocols, screenshots and transport stream recordings

PC CONNECTION (via ethernet interface): NetUpdate 4 (free software) + Free and automatic firmware updates + User customised channel plans+ Measurement reports and screenshots

GENERAL:Hybrid operation: Touch screen (7”) or conventional keyboard

        DiSEqC 2.x generator (DiSEqC 1.2 commands implemented)

        dCSS / SCD 2 (EN50607) and SATCR/SCD (EN50494)

BATTERY: > 4h(smart battery)

HARD CASE: Included

OPTION:

DAB, DAB+: Available

GPS Coverage Analysis: Available

Advanced DAB/DAB+ analyzer: Available

Advanced FM radio analyzer: Available

Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm: Available

OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input: Available

WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input: Available
