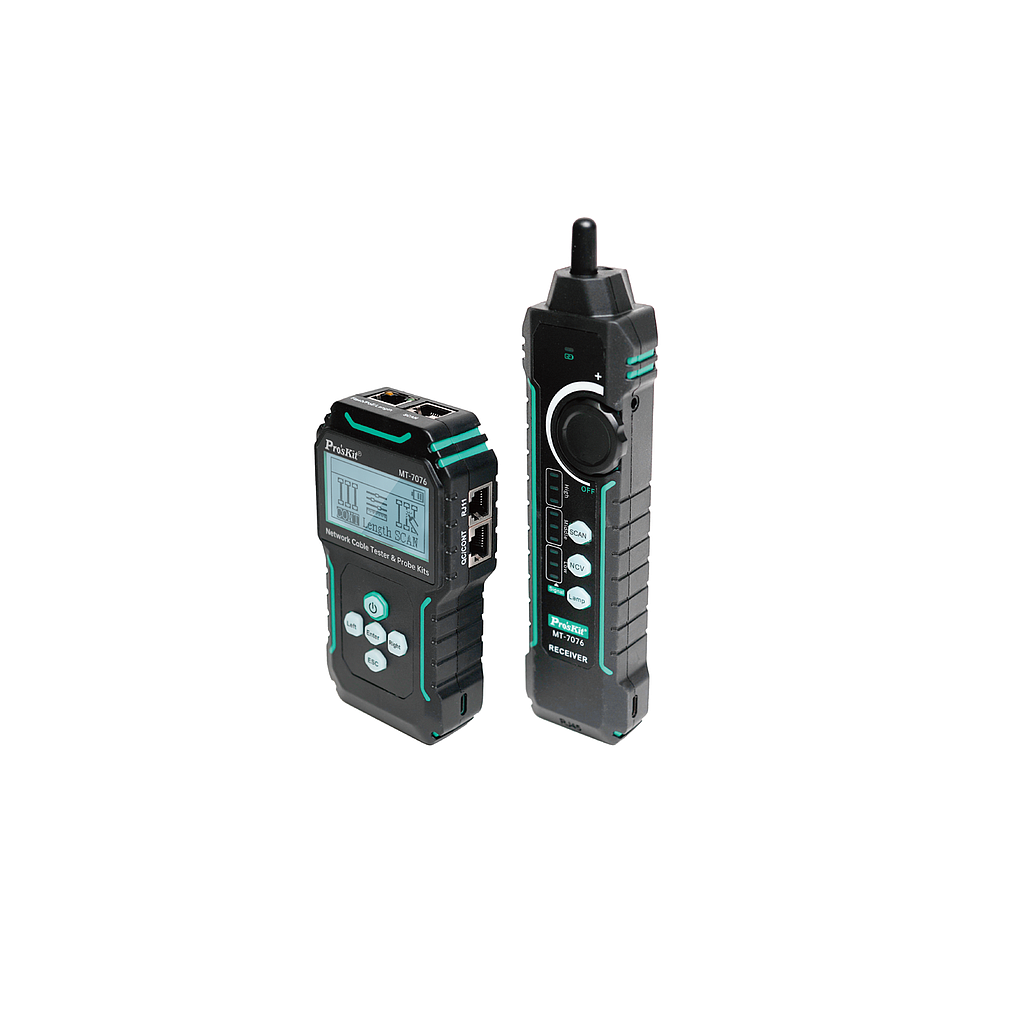

Proskit MT-7076 Network Cable Tester & Probe Kits

Transmitter Unit

Display: LCD 53 x 29 mm (128 x 64 Dots)

Language: English, Chinese

Connection Ports:

RJ45 x 3 ports

RJ11 x 1 port

Cable Network:

Cable Type: CAT5, CAT5e, CAT6, CAT7

Maximum Range: 300 m

Display: LCD: R&M 1 -8/ G

Cable Length Measurement:

Cable Type: CAT5E, CAT6

Range: 2.5 m – 200 m

Unit: m/ yard/ feet

Accuracy:

≤20m ±1.6m

20m ~ 100m ±2.4m

100m ~ 200m ±3.2m

Cable Tracing:

Signal Type: Analog/ Digital

Cable Type: CAT5E, CAT5E, CAT6 STP/UTP, Telephone cable

Tracing Range:

Analog: 1km

Digital: 600 m

Frequency: 455kHz

Maximum Signal Voltage: 5.0V ± 1Vp-p

Flash Port:

Blinking Frequency: 3s/time

Link Test:

Speeds: 10M/ 100M/ 1000M

Modes: FDX/ HDX, Auto Nego/ Non-Auto Nego

POE Testing:

Type: IEEE802.3af/at; Non-Standard

Connection: Midspan/ Enspan/ 8pin

Voltage Values

Backlight: 15s/30s/65s/on/off

Auto Power Off: 15 min/ 30 min/ 1 hour/ OFF

Power Supply: 3.7V 1400mAh Li-ion

Protection: ≤ 60V DC

Receiver Unit

Signal Type: Analog/ Digital

Sensitivity: Adjustable via rotary potentiometer

Flashlight: 1 LED

NCV (Non-Contact Voltage): AC 70V ~ 1000V 50/60Hz

Low Battery Indicator: Flashing Light

Headphone Jack: 3.2mm port

Power Supply: 3.7V 1400mAh Li-ion

Dimensions: 198 x 50 x 28 mm
