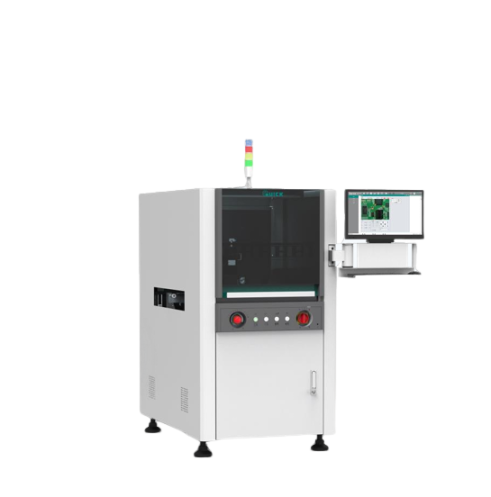

QUICK QC1200 Inline coating equipment (800x650x100mm)
Manufacturer: QUICK Model: QC1200 - Contact
XYZ axis operation range: 800x650x100mm
Repeat accuracy: XYZ：±10μm
Max speed: XY：800mm/s
Acceleration: XYZ:0.8g/0.8g
Drive system: XYZ servo motor
Max conveying speed: 24m/min
Load capacity of head: 5kg
Load capacity of track: 10 kg
Adjustable width of track: 50-500mm
Width adjustment mode: upperelectric，*lower manual（optional）
Adjustable width of reflow track: 50-450mm(optional)
Allowable height of board: distance between top and bottom of conveyor >120mm
Width of single coating: 2-30mm(depending on valve body)
Min width of board edge: 5mm（optional 3mm）
Track conveying height: 920±40m
Communication: SMEMA
Dimensions WxDxH: 1200x1310x1650mm
Voltage/Power: AC220V(50/60Hz) /1.5kW
Features:
Configured with industrial computer and motion control card, Windows 10 operating system, sound-light fault alarm and menu display
Programming by manual teaching for easy operation
X, Y, Z three-axis operation driven by servo motor and ball screw, with 0.02mm in accuracy
One-piece steel motion platform to ensure stable operation, special aluminum alloy rail and stainless steel conveyor chain
Equipped with SMEMA interface to communicate with other equipment
Immersion device: well designed self-made stainless steel container is used for easy replacement
Lighting and inspection：equipped with LED lighting system, and comes with LED UV inspection light source, switching by change-over switch, UV light source is used to inspect conformal coating on the PCB board
Cleaning：comes with automatic cleaning function, when the equipment stops operation, it can start cleaning mode by change-over switch, cleaning fluid in the pressure barrel will be pushed into the jet gun through the barrel to complete the automatic cleaning, without manually disassembling and cleaning the jet gun
