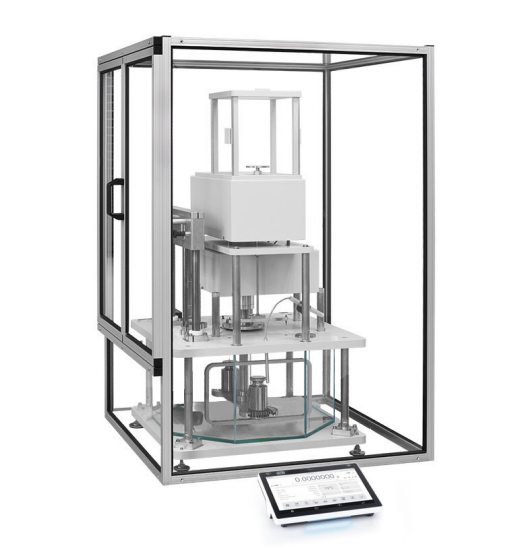

RADWAG AGV-2 20.5Y Automatic Comparator (26.1 kg; 1 mg)

Metrological parameters:

E1 Calibration Range : 1 – 20 kg

E2 Calibration Range : 1 – 20 kg

F1 Calibration Range : 1 – 20 kg

F2 Calibration Range : 1 – 20 kg

Maximum capacity [Max] : 26.1 kg

Readability [d] : 1 mg

Standard repeatability [5% Max] : 2 mg

Standard repeatability [Max] : 3 mg

Permissible repeatability : 6 mg

Electric compensation range : 100 g – +26.1 kg

Stabilization time : 30 s

Adjustment:  external

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions:  ø220 mm self centering

Object diameters : 25 – 145 mm

Electrical parameters:

Power supply : 100 – 240 V AC 50/60 Hz

Environmental conditions:

Operating temperature : +15 – +30 °C

Storage temperature : -20 – +50 °C

Operating temperature change rate : ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity : 40% – 60%

Relative humidity change rate : ±5% / 12 h (3% / 4 h)
