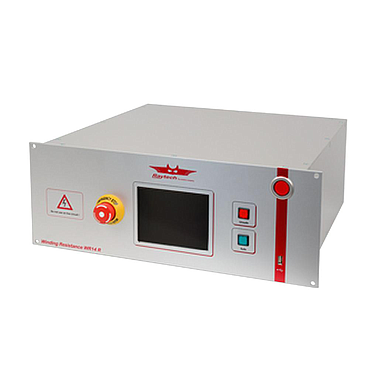

Specifications
- Size L: 395 mm (15.6”) W: 436 mm (17.2”) H: 177 mm (7.0”), Rack Unit: 4U
- Weight: 7.9 kg (17.4 lbs.)
- Input Power: 88 to 264 VAC, 47...63 Hz, or 12V DC (charging only)
- Output Voltage: 0 to 30 V DC
- Test Current user selectable: 25mA ... 15A
- Color LCD with back lighting and touch screen
- Front Panel Sealed, Anodized
- Interfaces: 4 USB 2.0 full speed (3 host, 1 device) and 9 Pin RS232 serial
- Memory Storage: Internally stores more than 10 000 test results
- Temperature: Operating –10°C to 60°C, Storage –20°C to 70°C
Measurement Parameters
- Current Range/ Measuring Range/ Accuracy/ Resolution
10-15A/ 0.00 µΩ...1 Ω/±0.1% Rdg/ ±0.1 µΩ/ 5 Digits or 0.05 µΩ
5-10A/ 0.0 µΩ...3 Ω/ ±0.1% Rdg/ ±0.2 µΩ/ 5 Digits or 0.1 µΩ
1-5A/ 0.0000mΩ...15 Ω/ ±0.1% Rdg/ ±0.5 µΩ/ 5 Digits or 0.5 µΩ
0.5-1A/ 0.000 mΩ...30 Ω/ ±0.1% Rdg/ ±2 µΩ/ 5 Digits or 1 µΩ
0.1-0.5A/ 0.000 mΩ...300 Ω/ ±0.1% Rdg/ ±5 µΩ/ 5 Digits or 2 µΩ
25-100mA/ 0.00 mΩ ...1200 Ω/ ±0.1% Rdg/ ±20 µΩ/ 5 Digits or 10 µΩ
<25mA/1.2 kΩ...10 kΩ/ ±0.1% Rdg/ ±100 mΩ/ 5 Digits or 200 mΩ
<25mA/ 10 kΩ...100 kΩ/ ±0.5% Rdg/ ±10 Ω/ 4 Digits or 20 Ω
- Resistance Range: 0.00 µΩ to 100 kΩ
- Inductance Range: 0 Henry to 1500 Henry
Accessories:
- Cable Bag
- Current Cables 2 x 5m
- Potential Cables CH 1 2 x 5m
- Potential Cables CH 2 2 x 5m
- Jumper Cable 1 x 5m
- Power Cord depending on country of distribution
- 2 Fuses
- USB Memory Stick
- Instruction Manual
- T-Base Pro Software for Data Exchange and Analysis.
