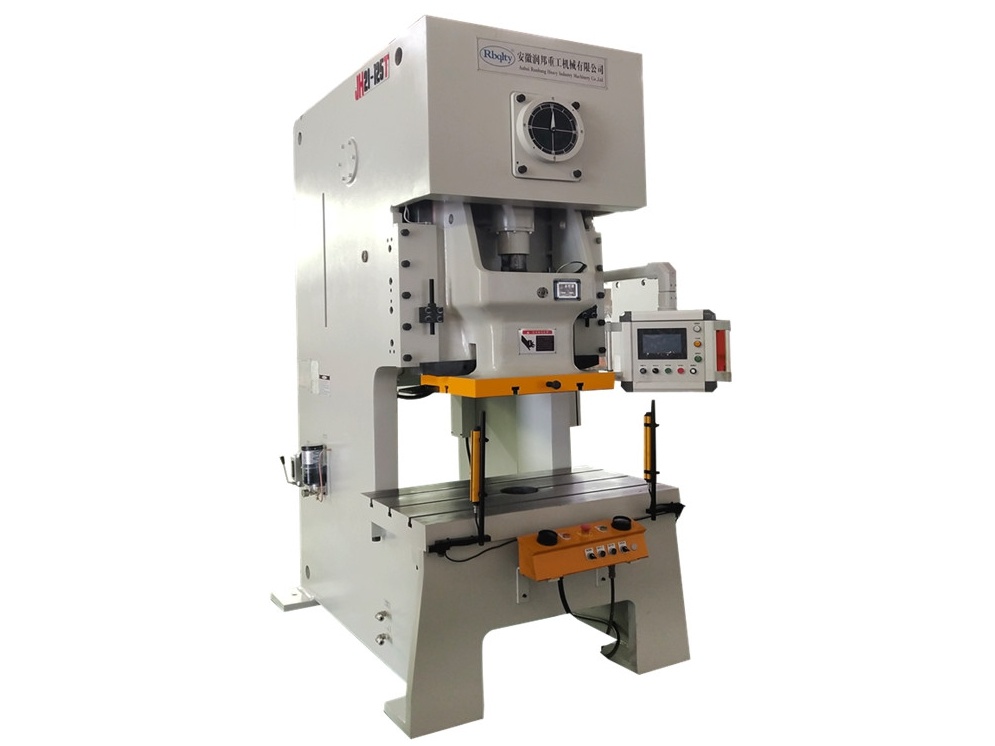

Rbqlty JH21-60 High Performance Pneumatic Power Press Machine (600KN)

Slider nominal pressure (KN): 600

Stroke of nominal force (mm): 4/2.5

Slider stroke (mm): 140/80

No.of strokes:

+ fixed (times/min): 70

+ variable L (times/min): 40-70

+ variable S (times/min): 60-110

Maximum closed height (mm): 300/330

 Closed height adjustment (mm): 70

Slider center distance from the body (mm): 270

Slider bottom size:

+ L-R (mm): 480

+ F-B (mm): 400

Hole size of die handle:

+ Diameter (mm): 50

+ Depth (mm): 70

Working table size:

+ L-R (mm): 870

+ F-B (mm): 520

+ Thickness (mm): 130

Ground screw distance:

+ L-R (mm): 840

+ F-B (mm): 1100

Machine sizes:

+ L-R (mm): 1200

+ F-B (mm): 1685

+ Height (mm): 2560

Motor power (solid/variable) (KW): 5.5/7.5

Weight (kg): 5500

Using air pressure (Mpa): 0.5
