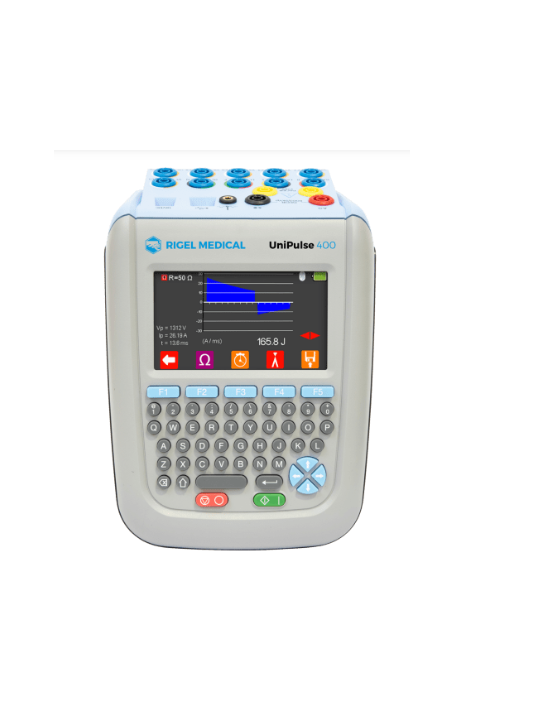

Rigel medical UniPulse 400 Defibrillator Analyzers (5000V, 5μs – 120ms, 200 - 600 Joules)

Defib - Energy Measurement

Load Resistance: 50Ω ± 1% non-inductive

Range: 0 - 199.9 Joules

Accuracy: ± 1% of reading ± 1 Joule

Range (High): 200 - 600 Joules

Resolution: 0.1 Joules

Voltage: 0 - 5000 Volts

Current: 0 - 100 Amps

Maximum Pulse Width: 5μs – 120ms

ECG Simulator

ECG Simulation: Hi-level output

ECG Waveforms – Ventricular Arrhythmias

Premature Ventricular Contraction (PVCI): Intermittent 80 BPM, Amplitude 0.50 - 5.00mV (±2%)

Bigeminy (BIG): 80 BPM, Amplitude 0.50 - 5.00mV (±2%)

Trigeminy (TRIG): 80 BPM, Amplitude 0.50 - 5.00mV (±2%)

Ventricular Flutter (VFLT): 240 BPM, Amplitude 0.50 - 5.00mV (±2%)

Ventricular Fibrillation - Coarse (VFBC): 240 BPM, Amplitude 0.50 - 5.00mV (±2%)

Ventricular Fibrillation - Fine (VFBF): 240 BPM, Amplitude 0.50 - 5.00mV (±2%)

Monomorphic Ventricular Tachycardia (MVT): 210 BPM, Amplitude 0.50 - 5.00mV (±2%)

Right-focal Premature Ventricular Contraction: 80 BPM, Amplitude 0.50 - 5.00mV (±2%)

ECG Waveforms – Atrial Arrhythmias

Sinus Arrhythmia (SAR): 20 - 300 BPM, Amplitude 0.50 - 5.00mV (±2%)

Missing Beat (MB): 20 - 300 BPM, Amplitude 0.50 - 5.00mV (±2%)

Atrial Flutter (AFLT): 300 BPM, Amplitude 0.50 - 5.00mV (±2%)

Atrial Fibrillation (AFB): 20 - 300 BPM, Amplitude 0.50 - 5.00mV (±2%)

Paroxysmal Atrial Tachycardia (PAT): 180 BPM, Amplitude 0.50 - 5.00mV (±2%)

Premature Junctional Contraction (PJC): 20 - 300 BPM, Amplitude 0.50 - 5.00mV (±2%)

ECG Performance Waveforms

Sine (SINE): 0.1 - 300Hz, 1.00 – 10.00mV

Square (SQ): 0.1 - 300Hz, 1.00 – 10.00mV

Triangle (TRI): 0.1 - 300Hz, 1.00 – 10.00mV

Sawtooth (SAW): 0.1 - 300Hz, 1.00 – 10.00mV

Inverse Sawtooth (INVSAW): 0.1 - 300Hz, 1.00 – 10.00mV

Pulse (PULSE): 0.1 - 300Hz, 0.50 – 5.00mV

ECG Waveform Output

Low Level: Low Level

Hi Level: Output Jack

Pacer Input

Fix Load: 50Ω

Accuracy: +/- 4% + 10µJ

Over Voltage Protection: 5000V

Variable Load: 50 to 1600Ω in 50Ω steps

Pulse Rate: 5.0 to 800 ppm

Heart Rate Selection: 20 – 300 bpm

Under & Overdrive: 85% (20 bpm min) and 115% (300 bpm max)

Waveform Selection: NSR, VFibC, VFibF, MVT, AFib, Missing Beat, R-Wave detection

Pulse Current Amplitude: 5.00 – 200mA

Accuracy: +/- (1% rdg +0.02mA)

Current Measurements: Average (RMS), Leading Edge, Trailing Edge, Peak (the highest during the pulse)

Pulse Width: 1.00 - 100ms

Pulse Energy: 1µJ – 2.00J

Pacer Refractory Periods

Refractory Period Test: 15 – 500mS (Paced and sensed)

Accuracy: +/- 1ms

Pacer Interference Test (Immunity)

Heart Rate: 20 - 300 bpm

Frequency: 50 or 60 Hz

Noise Level in mV: 0 - 15.0mV

AED Pulse Mode Waveforms:

Normal Sinus Rhythm (NSR): 20 - 300 BPM, Amplitude 1.00mV(±2%)

Asystole (ASYS):

Ventricular Fibrillation - Coarse (VFBC): 240 BPM, Amplitude 1.00mV(±2%)

Ventricular Fibrillation - Fine (VFBF): 240 BPM, Amplitude 1.00mV(±2%)

Monomorphic Ventricular Tachycardia (MVT): 210 BPM, Amplitude 1.00mV(±2%)

Atrial Fibrillation (AFB): 20 - 300 BPM, Amplitude 1.00mV(±2%)

ECG Waveforms - Sinus:

Normal Sinus Rhythm (NSR): 20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)

ST Elevation (STE): 20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)

ST Depression (STD): 20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)

Myocardial Infarction (MI): 20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)

Tall T (TT): 20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)

Asystole (ASYS):

ECG Waveforms – Atrial Conduction Arrhythmias:

First Degree AV Block (FAVB): 80 BPM, Amplitude 0.50 - 5.00mV(±2%)

Second Degree AV Block - Mobitz I (SAVB_MI): 80 BPM, Amplitude 0.50 - 5.00mV(±2%)

Second Degree AV Block - Mobitz II (SAVB_MII): 80 BPM, Amplitude 0.50 - 5.00mV(±2%)

Third Degree AV Block (TAVB): 50 BPM, Amplitude 0.50 - 5.00mV(±2%)

ECG Pacer Waveforms:

Synchronous Atrial (AAI): 20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms

Asynchronous Atrial (AOO): 20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms

Pacer (PCR): 20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms

Ventricular Pacer (VVI): 20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms

Atrial & Ventricular Pacer (DDD): 20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms

R-Wave Detection (RWD): 20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV

ECG Noise Selection:

Amplitude: Default Spec Value 0 – 10.00mV

Frequency: 50 - 60Hz

ECG Accuracy:

Rate: Default Spec Value ± 1%

Amplitude: ± 2% (LA-LL), ± 10% (Paddles)

Lead II: 1 – 10 mV (in steps of 0.5 mV)

Other leads are proportional to Lead II by the following percentages:

Lead I: 60%

Lead II: 100%

Lead III: 40%

V1: 63% [Reference LA]

V2: 71% [Reference LA]

V3: 68% [Reference LA]

V4: 80% [Reference LA]

V5: 55% [Reference LA]

V6: 49% [Reference LA]

Pacer Manufacturer Algorithms: CU Medical, GE, HP, Laerdal, Mindray, Philips, PhysioControl, Schiller, WelchAllyn, Zoll

Pacer Sensitivity Test:

Waveform, R Wave: Polarity Normal and Reversed, selectable

Dynamic Sensitivity: 0.05mV to 5.00mV in 50µV steps

General Specifications:

Dimensions: 220mm x 150mm x 90mm (L x W x H)

Weight: 1.5kg

Operation: 9.6V/2400mAh Nickel Metal Hydride battery pack

Battery charge time: 2.5 hours

Battery capacity (fully charged): 12 hours

Mains supply: 110/230V AC; 48 to 66Hz, 35VA power supply

Environmental protection: IP 40

Communication: USB

Display: LCD colour graphic display, ¼” VGA

Memory: 100 test results including graphs

Impact rating: 5J
