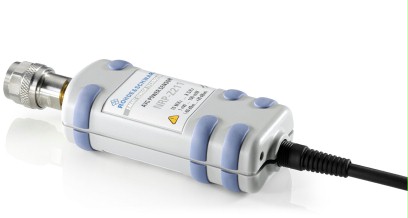

Rohde&Schwarz NRP-Z221 Two-Path diode power sensors (10 MHz~18 GHz)

Manufacturer: Rohde & Schwarz

Model: NRP-Z221

Warranty: 12 months


Frequency range: 10 MHz to 18 GHz

Power measurement range; maximum input power: 1.0 nW to 100 mW(-60 dBm to +20 dBm) max. 400 mW (AVG)/ 1 W (PK, 10 μs)

Impedance matching(SWR): 10 MHz to 2.4 GHz: <1.13 > 2.4 GHz to 8.0 GHz: <1.20, > 8 GHz to 18.0 GHz: <1.25

Rise time, video BW : <10 μs,>40 kHz

Uncertainty for power measurements at +20 °C to +25 °C

- absolute (in dB): 0.054 to 0.143

- relative (in dB): 0.022 to 0.142
