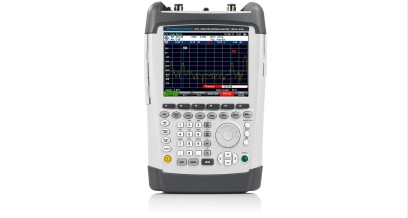

Rohde&Schwarz ZVH4 Cable and Antenna Analyzer (100kHz~3.6GHz)
Manufacturer: Rohde & Schwarz Model: ZVH4 Guarantee: 12 Month - Request a Quotation
- Contact
Manufacturer: Rohde&Schwarz
Model : ZVH4
Warranty : 12 months
Frequency range: 100 kHz to 3.6 GHz
Number of Ports: 2
Port output power: 0 dBm to -40 dBm
Data points: 101, 201, 401, 601, 631, 801, 1001, 1201
Cable error measurement mode (DTF): return loss (dB), VSWR
Measurement meter: S11, return loss (dB), VSWR, one-port cable
loss
Measurement mode (optional): transmission measurement, vector
network analysis, vector voltmeter, spectrum analysis, power meter, power
measurement with power sensor, pulse measurement
DC bias: yes
Display: 6.5"
color LCD with VGAresolution
Weight: 3 Kg
Included: lithium-ion battery pack, LAN and USB cables, AC power
supply, CD-ROM with software and documentation, quick start guide
