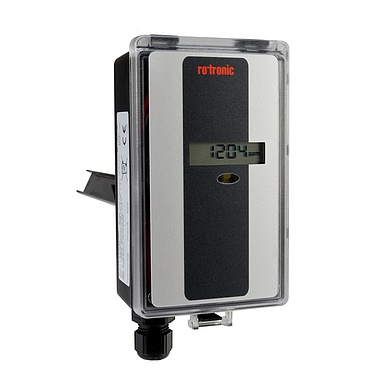

Rotronic CF3-D-DISP CO2 TRANSMITTER
Manufacturer: Rotronic Model: CF3-D-DISP - Request a Quotation
- Contact
Duct mount design for insertion into ducts and vents.
Applications: For ventilation control in residential properties, offices, classrooms, cinemas, public rooms, etc.
Features
• Measurement range: 0…2,000 ppm
• Measurement technique: infrared (NDIR) with automatic calibration
• Accuracy: ±30 ppm
• Power supply: 16...29 VDC/AC • Output 1 (0...2,000 ppm): 0…10 VDC
• Output 2 (0...2,000 ppm): 4…20 mA (no output 2 in CF3-W-EU(US)-Disp-FLI)
• Range of application: 0…50 °C (30...120 °F) / 0…95 %RH
• Maintenance: not necessary
• Lifetime: >15 years
DISPLAY TYPE: In option, LCD, 1-line
ENCLOSURE MATERIAL: ABS
IP PROTECTION RATING: IP65
DIMENSIONS: 142 x 84 x 46 mm / Probe 245 x 22 x 15 mm
