Model: 80kV / 0.5
Rated Voltage (Peak Value): 80kV
Load:
0.1Hz; ≤1.1µF
0.05Hz; ≤2.2µF
0.02Hz; ≤5.5µF
Fuse: 20A
Weight:
Controller: 6kg
Booster: 50kg

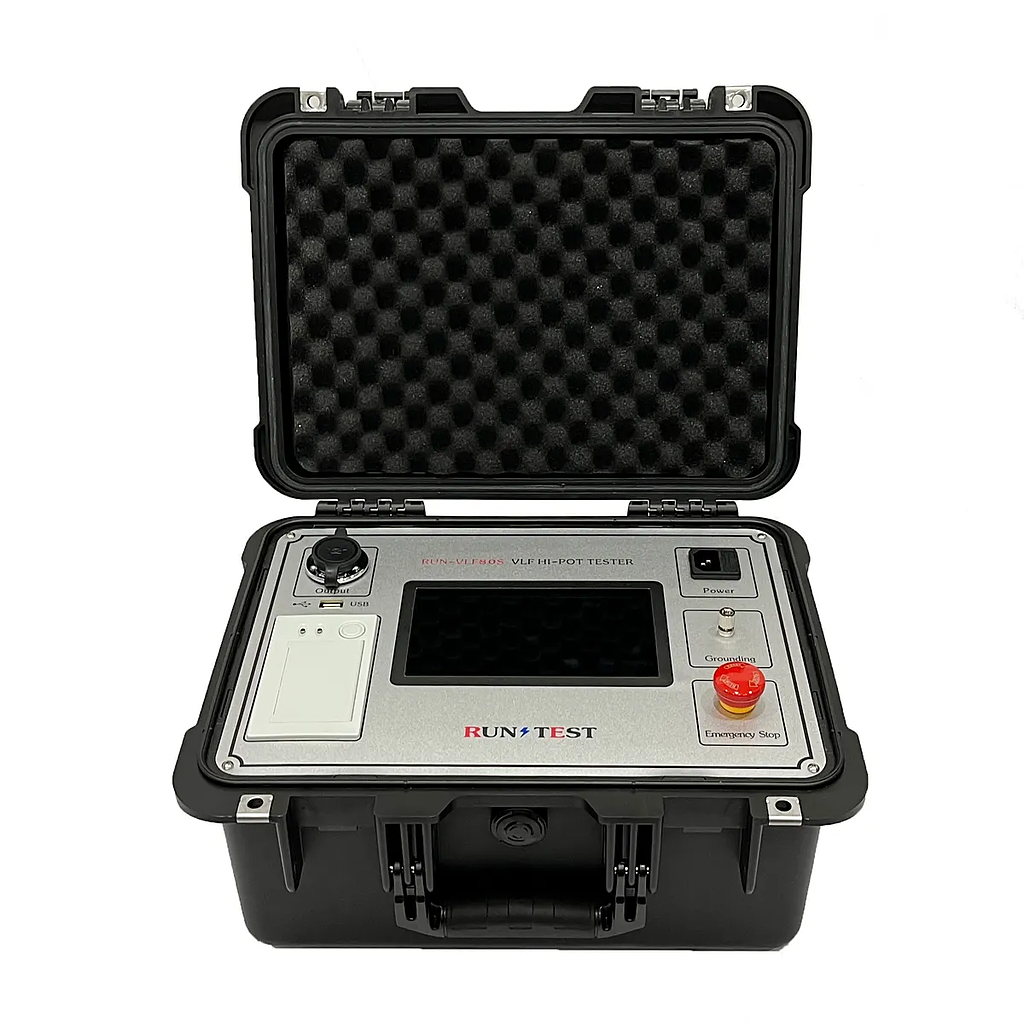

80kv AC Hipot Tester Vlf Ultra-Low Frequency High Voltage Generator Vlf AC Generator/ Vlf Tester
High voltage withstand test of electrical equipment is one of the most important items specified in insulation preventive test.
The withstand voltage test can be divided into AC withstand voltage test and DC withstand voltage test. The AC withstand voltage test can be divided into power frequency, frequency conversion and 0.1hz ultra-low frequency test technology, of which 0.1hz ultra-low frequency technology is the latest technology recommended by the current international electrotechnical commission.
This Vlf Tester is especially suitable for withstand voltage test of electrical equipment with large insulation equivalent capacitance (such as power cable, power capacitor, large and medium- sized generator and motor, etc.).
Main features of the 80kv Vlf Hipot Test
This kind of equiptment in High Voltage Test is:
1. Advanced technology: using digital frequency conversion technology, microcomputer control, fully automated test processes such as boosting, bucking, measurement, and protection.
2. Easy to operate: simple wiring, easy to operate.
3. Comprehensive protection: multiple protections (overvoltage protection, high and low voltage side overcurrent protection), rapid action (action time ≤ 10ms), and the instrument is safe and reliable.
4. Safe and reliable: low-voltage connection between the controller and the high-voltage generator, photoelectric control, safe and reliable use.
5. The high and low voltage closed-loop negative feedback control circuit is adopted, and the output has no capacity rise effect.
6. Complete configuration: capacitive touch screen, LCD English character display, automatic storage, automatic printing.
7. Large test range: 0.1Hz, 0.05Hz and 0.02Hz multi-frequency selection, large test range.
8. Small size and light weight: very conducive to outdoor work.
9. Chinese and English switching function
