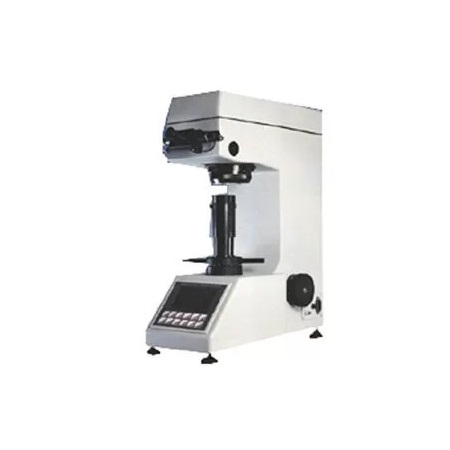

SADT HVS-10 Digital Vickers Hardness Tester (1~2967HV)

Type: Digital Vickers low load hardness tester

Testing Forces (N): 2.942 / 4.903 / 9.807 / 19.61 / 24.52 / 29.42 / 49.03 / 98.07

Testing Forces (Kgf ): 0.3 / 0.5 / 1 / 2 / 2.5 / 3 / 5 / 10

Load control: Automatic loading, dwelling and releasing

Holding Time (s): 0~60 (5s as a unit)

Magnification of microscopex: 400x for measurement, objective 40x, eyepiece 10x; 100x for observation, objective 20x, eyepiece 10x

Resolution (μm): 0.0625 μm for 400x / 0.125 μm for 200x / 0.25 μm for 100x

Testing range: 1~2967 HV

Max. Height of the specimen: 170mm

Max. width of the specimen: 130mm

Power: 100/220V, AV 50/60Hz

Dimension (LxWxH) (mm): 530 x 280 x 630

Weight (kg): 47
