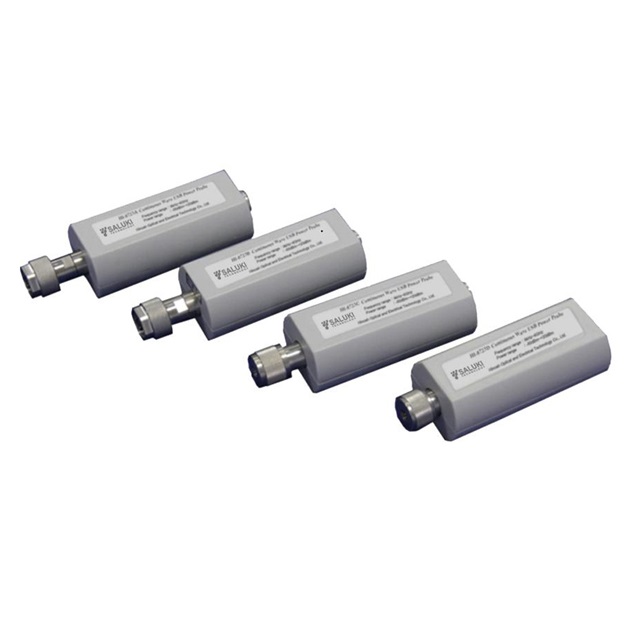

SALUKI S87232 USB CW Power Sensor (50 MHz ~ 26.5 GHz)
Manufacturer: SALUKI Model: S87232 Guarantee: 12 Month - Contact
Frequency Range: 50 MHz to 26.5 GHz
Power Range: -60dBm to +20dBm
Zeroing Accuracy: ≤ 1nW
Input Port VSWR:
50MHz – 2GHz: 1.15
2GHz – 12.4MHz: 1.20
12.4GHz – 18MHz: 1.27
18GHz – 26.5MHz: 1.30
Input Connector: 3.5mm
Calibration Factor Uncertainly:
50MHz-18GHz: ±0.25dB
18GHz – 26.5GHz: ±0.35dB
Linearity Power:
+10dBm ~ +20dBm: ±0.18dB
-40dBm ~ +10dBm: ±0.14dB
-50dBm ~ -40dBm: ±0.39dB
-60dBm ~ -50dBm: ±0.79dB
Max. Input Power: +23dBm
Power Supply: Mini USB port
Power Consumption: ≤ 1.8W
Dimension: 46.2 (W) × 35.6 (H) × 135.4 (D) mm
Weight: 225g
