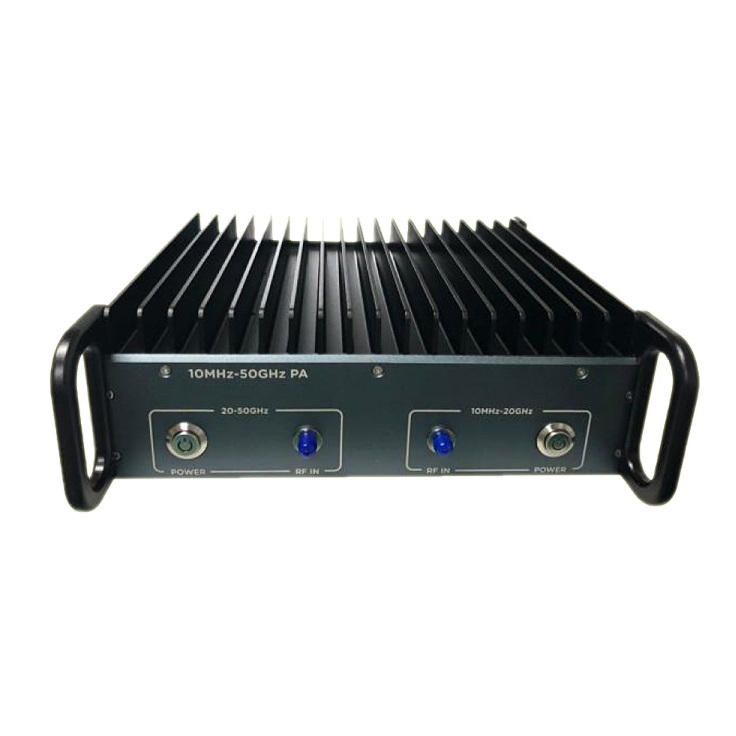

SALUKI SPA-10M-50-1 Solid State Power Amplifier (10MHz - 50GHz, 1W)
Manufacturer: SALUKI Model: SPA-10M-50-1 Guarantee: 12 Month - Contact
Frequency Range: 10MHz – 50GHz
Output Power: 30dBm (10MHz-20GHz), 22dBm (20-50GHz)
Input Power: -10dBm (10MHz-20GHz), -15dBm (20-50GHz)
Signal gain: 54dB (10MHz-20GHz), 46dB (20-50GHz)
Gain Flatness: ±6dB (10MHz-20GHz), ±5dB (20-50GHz)
Input VSWR: 2:1
Background noise: -40dBm/MHz
Spurious: -60dBc
Impedance: 50 ohm
Input port: 2.4mm (female)
Output port: 2.4mm (female)
Power Supply: AC 220V±10%, 50/60Hz
Cooling Type: Air cooling
Operating Temperature: 0 ~ 50℃
Dimension: 245.5 × 255.0 × 87.1mm
