I. Main Technical characteristics

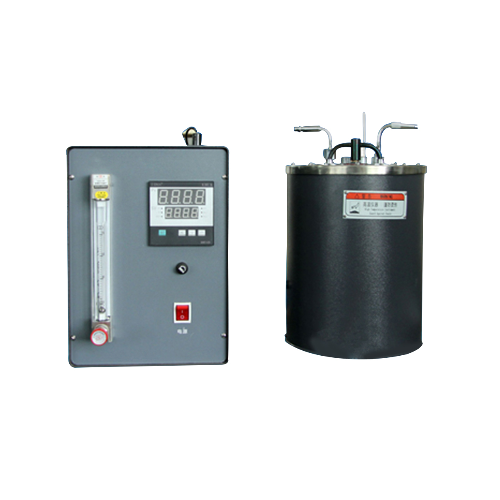

1.It is composed of oil bath and control cabinet,small volume and reasonal structure design.
2.The oil bath is the interlayer roundness steel container,the dimension Φ195 mm×255 mm,and with the inner
Electric heater 1000W,the temperature control accuracy（150±3）℃,（180℃±3）℃，（250±5）℃.
3.The control cabinet is to manage the temperature of the oil bath,and control the air flux from the external source.
II. Main technical specifications
1. Power supply: AC 220 V±10%, 50 Hz;
2. Bath type: oil bath;
3. Oil bath specification: Φ195 mm×255 mm;
4. Oil bath cubage: 5000 ml±50 ml;
5. Heating mode: heated by an electric heater;
6. Heating power: 1000 W;
7. Temperature controlling range: room temperature～250 ℃;
8. Temperature controlling accuracy: 150 ℃±3 ℃, 180 ℃±3 ℃, 250 ℃±5 ℃;
9. Ambient temperature: room temperature～+35 ℃;
10. Relative humidity: ≤85%;
11. Total power consumption: less 1200 W;
12.Outline dimension: control cabinet 280㎜×260㎜×380㎜(L*W*H)
oil bathФ250㎜×450㎜(Diameter*H)
