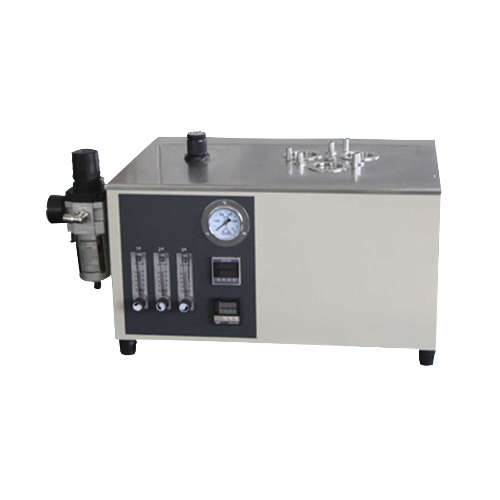

I. Main technical features
1. It equips a specially designed heating bath.The gas circuit is designed reasonably and the effect of evaporation is good.
2. The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 3 determinations at the same time.
3. The instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.
II. Main technical specifications
1. Power supply： AC(220±10%)V,50Hz，2500W
2. Dimension of evaporation bath： φ260mm×130mm
3. Sample positions： 3 positions
4. Dimension of sample position： φ51mm×70mm
5. Working temperature： (160～165)℃
6. Temperature control method： Automatic
7. Temperature display： Digital
8. Flow rate display： Displayed by a ball float type flowmeter.
9. Working pressure of reducing valve： 0.035MPa
10.Air source： External connection，over (1000±150)mL/s
11. Overall dimension： 590mm×480mm×340mmm（Thermometer holder is not included）
Note: An air compressor is equipped
