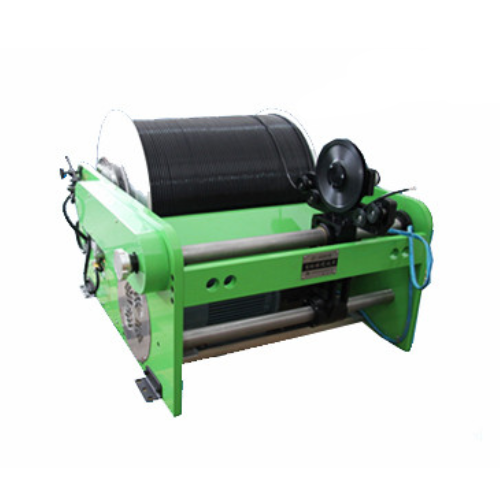

Samyon JC-3000 Automatic Drain Winch (0～3000 m)

Name: Samyon JC-3000 Automatic Drain Winch (0～3000 m)
Brand: Samyon

ManufacturerSamyon(View more products from this manufacturer)

ModelJC-3000

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

I. Main technical features

1. With automatic discharge cable function, through sophisticated combination of mechanical structures can be satisfied with the automatic discharge cable effect.

2. Using SCM control technology, LCD displays，the instrument has a high degree of automation mode, real-time information comprehensive, advanced technical indicators, constant speed control to achieve "DZ / T 0196.8-1997" A level standard.

3. The design idea of multipurpose, versatility, cable decentralization and upgrading with automatic / manual, constant speed control, point measurement / even depth correction, and other functions, suitable for different user logging requirements.

4. Reliable safety performance design, not only has the function of automatic braking suddenly loses power, but when the hand after lifting off, using positive shake rise, the reverse automatic brakes, safe and reliable.

5. Advanced instrument protection function, has the running process of the pull over gauge automatic parking protection function, ensure the underground probe tube and the safety of this instrument.

II. Main technical specifications

1. Speed range: 0 m / min ~ 30 m / min;

2. Depth range: 0 m ~ 3000 m;

3. Control: integrated intelligent control panel;

4. Constant speed range: 0.5 m / min ~ 20 m / min, error ± 5%;

5. Display range: 0m ~ 9999.99 m, error ≤ ± 0.4 ‰;

6. Control: automatic, manual, calibration;

7. Control direction: up, down;

8. Measurement: point measurement, continuous;

9. Cable specifications: Fitted / plastic cable optional

10. Working temperature: -10 ℃ ~ 70 ℃;

11. Power Supply: AC (220 ± 10%) V, 50Hz;
