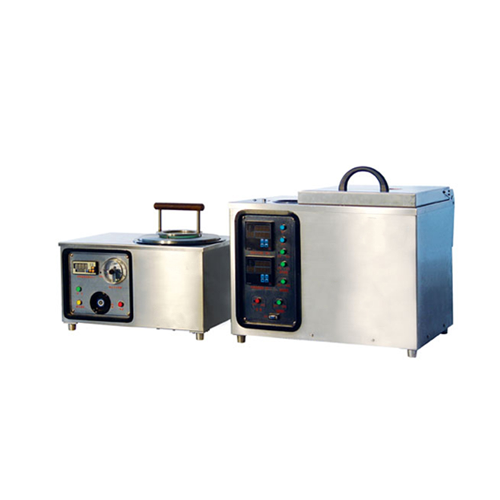

(1) PAV-1-1 pressuring aging vessel
1.Electricity
Power supply： AC（220±10%）V、50Hz
Rated power： 1100W
Rated current： 10A
2.Vessel
Volume： 13L
Medium： Air
Rated working temp.： 110℃±5℃
Rated working pressure： 2.1MPa
Designed pressure： 2.2 MPa
Water pressure： 2.75 MPa
Safety valve opening pressure： 2.15 MPa
Explosive pressure for rupture disk： 2.6 MPa
3. Pressure controller
Model： WP962-2(WP-D90)
Precision： ±0.01MPa
4. Temperature and time controller Model WP962-1(WP-D90)
Temperature control precision： ±0.1℃
Grading： 64×1080min
Outage maintaining function： Yes
Dimension : 630mm×450mm×500mm
（2）PAV-1-2 aging vacuum vessel
1. Electricity
Power supply： AC（220±10%）V、50Hz
Rated power： 900W
Rated current： 10A
2. Vessel
Volume： 13L
Medium： Air
Rated working temp.： 180℃±5℃
Rated working pressure： Absolute pressure 15kPa
Pressure control mode： Electric contact pressure gauge
3. Temperature and time controller Model XMT-E55T2
Temperature control precision： ±0.1℃
Time control mode： Button
4. Dimension 560mm×390mm×350mm
