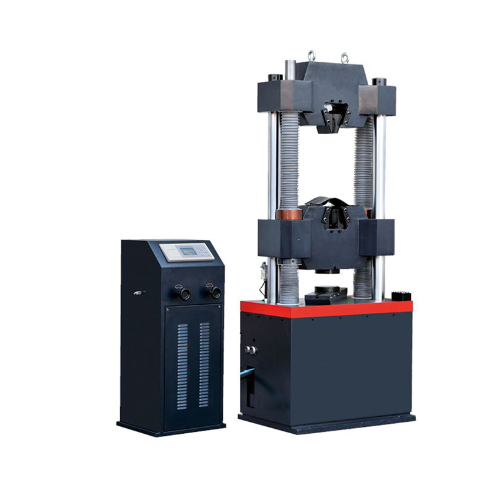

Main Function and Usage
1.It is mainly used in the tensile testing of metal materials with obvious yield phenomenon.
2. Control method of rate testing: manual control.
3.It can be used in testing the tensile strength, yield strength, percentage elongation after fracture and other mechanical performance index of the metal materials.
Main Specifications and Technical Parameter
Maximum Testing Force: 1000 kN
Class of Testing Machine: Class 1
Efficient Measure Range: 10%-100%FS
Relative Accuracy of Value Display: ±1%
Tensile Volume(mm): 700
Compression Volume(mm): 550
Column Space(mm): 550
Round Specimen Clamping Range(mm): Φ6-Φ45
Flat Specimen Clamping Thickness(mm): 0-30
Max. Width of Flat Specimen Clamping(mm): 75
Pressure Plate Dimension(mm): Φ160
Overall Dimension(L*W*H)(mm): 910*700*2300
Oil Source Console Dimension(mm): 700*700*1500
Total Motor Power(kW): 2
Total Weight(kg): 2800
