Application:

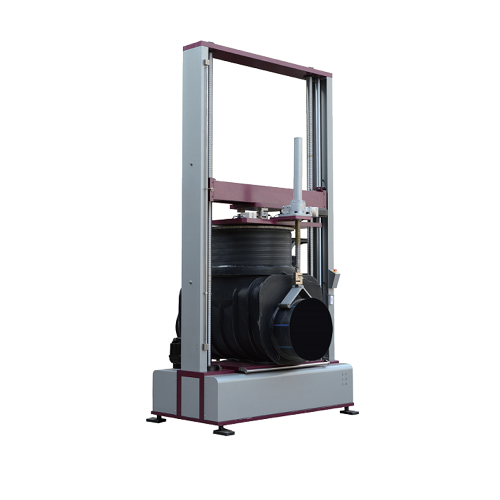

SYICM manhole mechanical property tester is designed to determine the performance of inspection chamber, manhole frame as well as manhole wall. It can be used to test shear strength and the axial loading performance of manhole base; It can also be used to test Ring stiffness, flatness and ring flexibility test.
Standard: BS EN 13598-1:2003, ASTM D 2412-2002.
Parameter:
Max.Test force: 30kN(Dual-screw)
Load accuracy: ±1%
Load resolution: 1N
Crossbeam resolution: ±1%
Test speed: 0.5~200mm/min(Stepless)
Speed tolerance: ±1%
Pipe diameter range for Ring stiffness test: 200mm-2000mm
Inner diameter measurement range: 300mm-2000mm
Inner diameter measuring accuracy: ±0.5%
Compression plate dimension: 450mm*400mm
Manhole base diameter range: 315mm~1200mm
Width of steel belt: 100mm
Power supply: 220VAC 50Hz 1.5kW
Safety protection grade: IP55
Dimension of basic frame(exclude compression plate): 1360mm*650mm*3400mm(L*W*H)
Mass of basic frame: 600kg
Dimension of shear test device: 1450mm*1450mm*2700mm(L*W*H)
Mass of shear test device: 300kg
Covering area: 2000mm*1500mm
