Application:

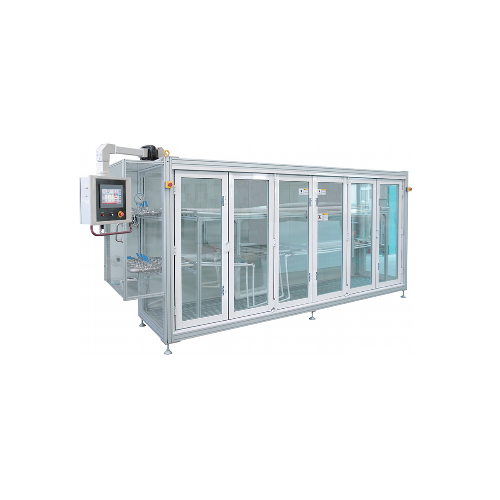

The Thermal Cycling Tester is mainly used to determine the leakage status of composite pipes & fittings when subjected to specified cycling times under speciffied internal pressure load.
Standard:
ISO 10508, ASTM F 1335-98 and the equivalent.
Parameter:
Pressure range: 4.00bar-12.00bar(0.400Mpa-1.200Mpa)
Pressure control accuracy: ±0.05Mpa
Number of test stations: 6, can be closed individually
Alternation time between hot and cold water: <60s
Cycle period: 300s-1800s
Number of cycles: selectable 1-100000
Temperature range(cold water): 20ºC to RT(selectable)
Temperature range(hot water): PT to 95ºC(selectable)
Temperature control accuracy(cold water): ±2ºC
Temperature control accuracy(hot water): ±1ºC
Temperature display error: 1ºC
Max. total cross-sectional dim. of all connect test samples: 6200mm2(2*63)/4200mm2(1*63)
Power supply: 380VAC 50Hz 25KW
Overall dimensions(L*W*H): (5200*3200*2100)mm(6stations)
Installation dimension(L*W*H): (6000*4000*3000)mm
