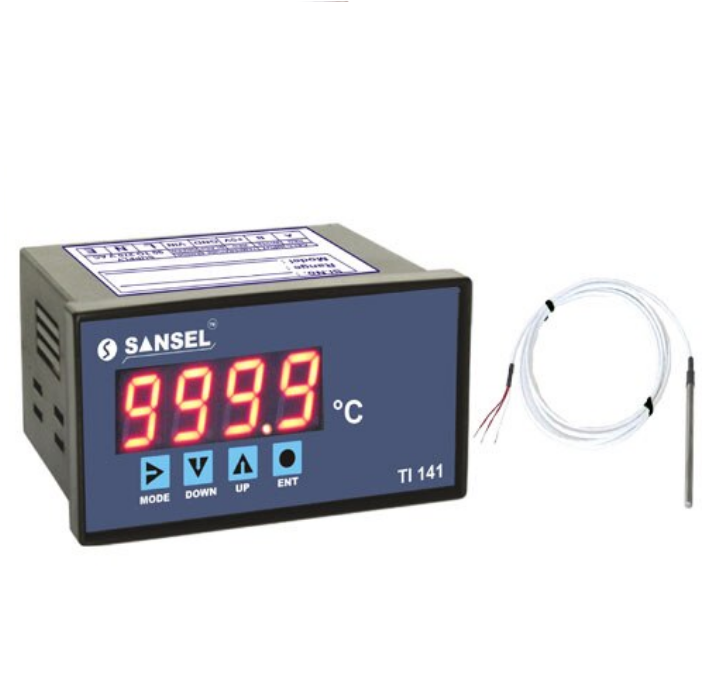

Sansel TI 141 Temperature Indicator (0.1/1ºC; ±0.1%FS)
Manufacturer: Sansel Model: TI 141 Guarantee: 12 Month - Contact
Sensor inputs: RTD - PT 100 , TC - J , K , R , S , T
Display range: As per selected input
Resolution: 0.1/1 (Selectable)
Accuracy: ±0.1% of FS
Re Transmission: Opto-Isolated analog output 4~20mA DC
Operating environment: 0~50ºC / 5~95 % RH Non condensing
Power supply: 90~270VAC/DC; 50/60Hz
Overall dimension: 48(H) X 96(W) X 65(D) mm
Cut out dimension: 44(H) X 90(W) mm
Housing panel mountable ABC plastic
Weight: ≈200 grams
