Specifications
DC Volt Range : 10–300 Vdc
DC Current Range: 10–15 / 150–300 Vdc: 0–60 Amps
15–150 Vdc: 0–120 Amps
Accuracy and Resolution : ±1.0%, 0.1 Amp
Display: 5.7" LCD Color Touch Screen
Power Supply : 110 Vac, 60 Hz
Communications Port : USB / RS232
Internal Memory: 8MB Flash
Size (main unit): 9.0" x 14.5" x 27.0"; 53 lb.
Size (with case/acc.): 12.5" x 23.0" x 31.0"; 93 lb
Accessory Ordering Information
Includes

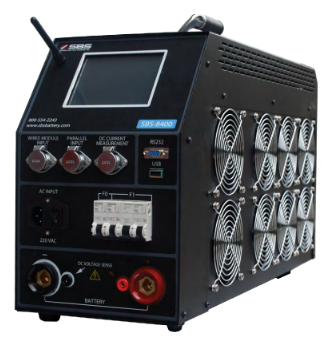

Main unit
Instruction manual
Computer analysis software
6 ft. DC cable set (pos. & neg.)
3 ft. AC cable
RS232 wire
Case with wheels
Optional Accessories
MODULE-1.2/2-25: 1.2/2V Wireless module kit w/ case Qty. 25 (+2 spare)
MODULE-1.2/2-30: 1.2/2V Wireless module kit w/ case Qty. 30 (+2 spare)
MODULE-2/6/12-15: 2/6/12V Wireless module kit w/ case Qty. 15 (+2 spare)
MODULE-2/6/12-30: 2/6/12V Wireless module kit w/ case Qty. 30 (+2 spare)
8400-600A: 600 DC Current Clamp
SLAVE-CAB-8400>8400: Paralleling Cable, SBS-8400 to SBS-8400/ SBS-4815
SLAVE-CAB-8400>S: Paralleling Cable, SBS-8400 to S-Series
SLAVE-CAB-8400>(2)S: Paralleling Cable, SBS-8400 to (2)S-Series
BCT110/220-1000: 750 Watt Voltage Transformer 110/220 Vac 50/60 Hz
Pelican case upgrade available
