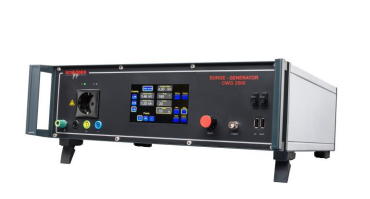

Schloeder CGW 2500 Surge-Generator (1 – 999 pulses, 0.2 – 4.4 kV)

Surge / Combined wave generator

Charging voltage: 0,2 – 4,4 kV

Charging time:  10 sec

Number of pulses: 1 – 999

Repetition rate: 10 – 990 sec

Phase angle:  = 0° - 359°, 1° steps, mains-synchronized for 50 + 60 Hz

Polarity: positive, negative, alternating

Trigger: manually or externally

Interface: USB(virtual COM Port)

                optional: optical with fiber optics

HV output: ungrounded and ground referred

Memory function: select test levels 1 – 4(standard), 32 memory positions

Discharge parameters: display of discharge

                      surge voltage / surge

                      current after discharge

Operating temperature: 0 - 40 °C

Dimensions: 19 housing, 3 U

Weight: approx. 18 kg

Supply voltage: 100-240 V / 47-63 Hz / 100 VA

Details

Datasheet


Options

CWG 520 3-phase coupling network 4 x 16 A

CWG 523 3-phase coupling network 4 x 32 A

CWG 524 3-phase coupling network 4 x 60 A

CWG 52x – 550 HV option up to 550 VAC L-L

CWG 1525 CDN for 2 unscreened, balanced lines, 1 A

CWG 1526-4 CDN for 2 unscreened, balanced lines, 4 A

CWG 1526-10 CDN for 2 unscreened, unbalanced lines, 10 A

CWG 1528 CDN for 4 unscreened, unbalanced lines, 6 A with RS232 interface

CWG 550 18 µF capacitor in a housing

CWG 551 9 µF capacitor + 10 Ω resistor in a housing

CWG 553 0,5 µF capacitor + 40 Ω resistor in a housing

ZUB LWL OPTO-MOD Optic interface with 2 connectors for optic fiber cables (retrofit)

ZUB LWL OPTO-MOD-N Optic interface with 2 connectors for optic fiber cables

(upon ordering a new equipment)

ZUB LWL USB-ADAPTER Optic fiber cable, 5 m, USB to optic interface connector

ZUB LWL-100 Optic fiber cable, 1 m, optic interface connector on both sides

ZUB LWL_30 Optic fiber cable, 30 cm, optic interface connector on both sides

EMV-SOFT Control software for surge, burst and voltage dips generators
