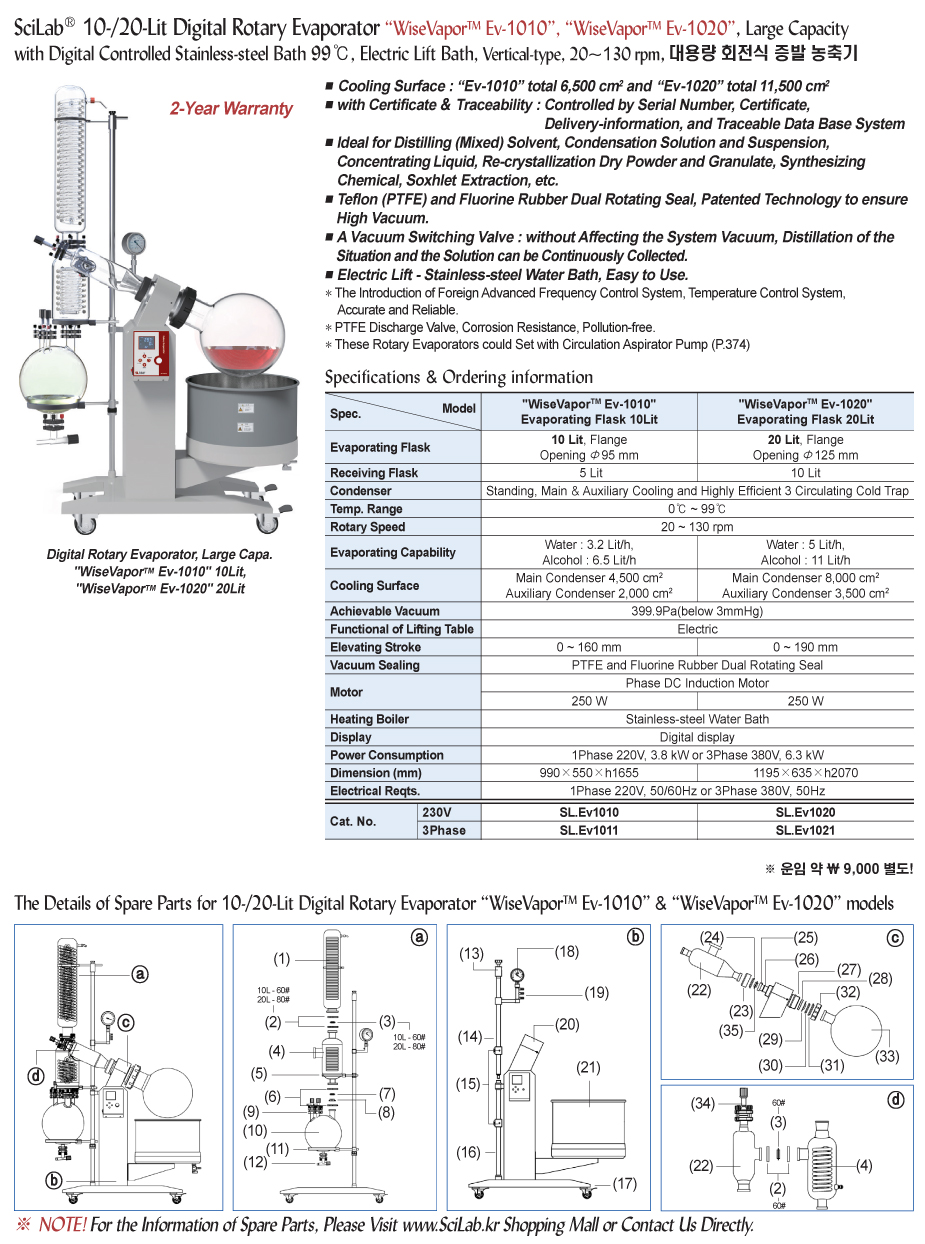

-Evaporating Flask: 20 Lit, Flange Opening Φ125 mm
-Receiving Flask: 10 Lit
-Condenser: Standing, Main & Auxiliary Cooling and Highly Efficient 3 Circulating Cold Trap
-Temp. Range: 0℃ ~ 99℃
-Rotary Speed: 20~130 rpm
-Evaporating Capability: Water: 5 Lit./h, Alcohol: 11 Lit/h
-Cooling Surface: Main Condenser: 8,000 cm²; Auxiliary Condenser: 3,500cm²
-Achievable Vacuum: 399.9Pa(below 3mmHg)
-Functional of Lifting Table: Electric
-Electric Stroke: 0 ~ 190 mm
-Vacuum Sealing: PTFE and Fluorine Rubber Dual Rotating Seal
-Motor: 250 W, Phase DC Induction Motor
-Heating Boiler: Stainless steel Water Bath
-Display: Digital display
-Power Consumption: 1phase 220V, 50/60Hz, 3.8 kW or 3 phase 380V, 6.3 kW
-Dimension (mm): 1195 x 635 x h 2070
-Electrical Reqts. 1phase 220V, 50/60Hz
