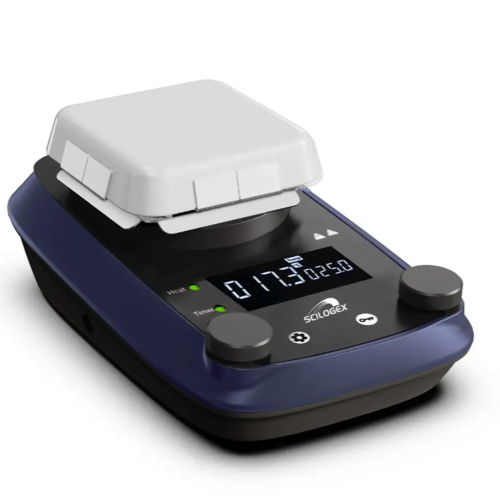

SCILOGEX SCI4-550HS Hotplate-Stirrers (100 × 100mm; 460W)

Working Plate Size: 100 × 100mm (4 inch)

Plate Material: Glass Ceramic

Motor Type: Brushless DC motor

Stirring Positions: 1

Maximum Stirring Volume [H2O]: 10L

Maximum Stirrer Size [Length]: 40mm

Speed Range and Step: 50~1500rpm (Step: 1rpm)

Speed Display: LCD

Temperature Display: LCD

Heating Temperature Range: Room temp – 550°C (Increment: 1°C)

Temperature Control Accuracy: ±1°C (<100°C) | ±1% (>100°C)

Overheating Protection: 580°C

Temperature Display Accuracy: 0.1°C

External Temperature Sensor: PT1000 (Accuracy: ±0.2°C)

Waste Heat Warning Function: 50°C

Data Connection: RS232

Protection Class: IP21

Timer Function: 1min – 99h 59min

Motor Output Power: 10W

Power: 460W

Heating Output Power: 410W

Voltage / Frequency: 100-120 / 200-240V, 50/60Hz

Dimensions [L × W × H]: 270 × 175 × 108mm

Weight: 2.2kg

Permissible Ambient Temp & Humidity: 5–40°C, 80% RH

Datasheet
