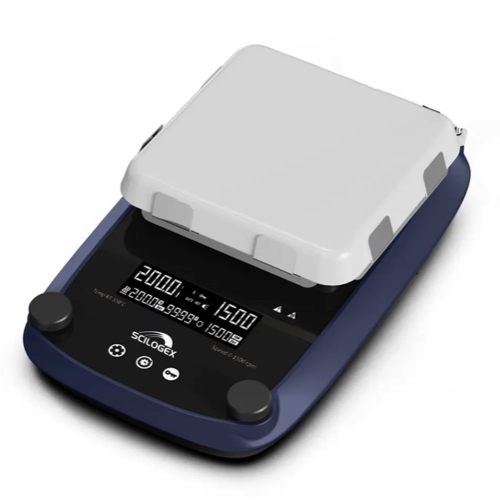

SCILOGEX SCI7-550HSM Hotplate-Stirrers (184 × 184mm; 1150W)

Working Plate Size: 184 × 184mm (7 inch)

Plate Material: Glass Ceramic

Motor Type: Brushless DC motor

Stirring Positions: 1

Maximum Stirring Volume [H2O]: 20L

Maximum Stirrer Size [Length]: 80mm

Speed Range and Step: 50~1500rpm (Increment: 1rpm)

Speed Display: LCD

Temperature Display: LCD

Heating Temperature Range: Room temp – 550°C (Increment: 1°C)

Temperature Control Accuracy: ±1°C (<100°C) | ±1% (>100°C)

Overheating Protection: 580°C

Temperature Display Accuracy: 0.1°C

External Temperature Sensor: PT1000 (Accuracy: ±0.2°C)

Waste Heat Warning Function: 50°C

Data Connection: RS232

Protection Class: IP21

Timer Function: 1min – 99h 59min

Motor Output Power: 50W

Power: 1200W

Heating Output Power: 1150W

Voltage / Frequency: 100-120 / 200-240V, 50/60Hz

Dimensions [L × W × H]: 360 × 230 × 110mm

Weight: 4.3kg

Permissible Ambient Temp & Humidity: 5–40°C, 80% RH
