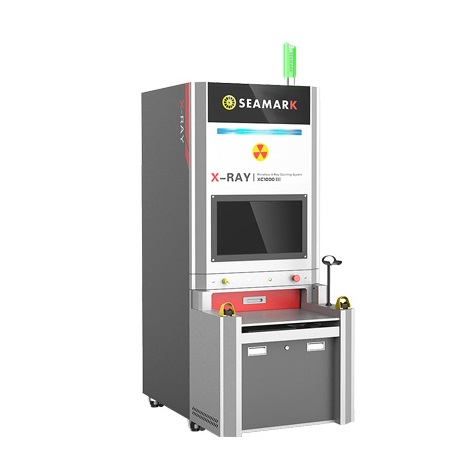

Seamark ZM XC1000 Offline Reel Counter
Manufacturer: Seamark ZM Model: XC1000 - Contact
X-Ray Tube Source Specification
Type: Sealed Micro-Focus X-Ray Tube
Voltage: 80 KV
Operating Voltage Range: 30-80KV
Operating Current Range: 200 -700μA
Max Output Power: 56W
Micro Focus Spot Size: 30μm-40μm
Flat Panel Detector Specification
Type: TFT Industrial Dynamic FPD
Pixel Matrix: 3072×3072
Field of View: 427mm×427mm
Resolution: 3.6Lp/mm
Frame (1×1): 6fps
A/D Conversion Bit: 16bits
Dimensions: L800mm×W1260mm×H1950mm
Input Power: 220V 10A 50-60HZ
Max Sample Size: 450mm×450mm
Control System: Industrial PC WIN7/ WIN10 64bits
Net Weight: Approx 800KG
Radiation: <1μSv/h
