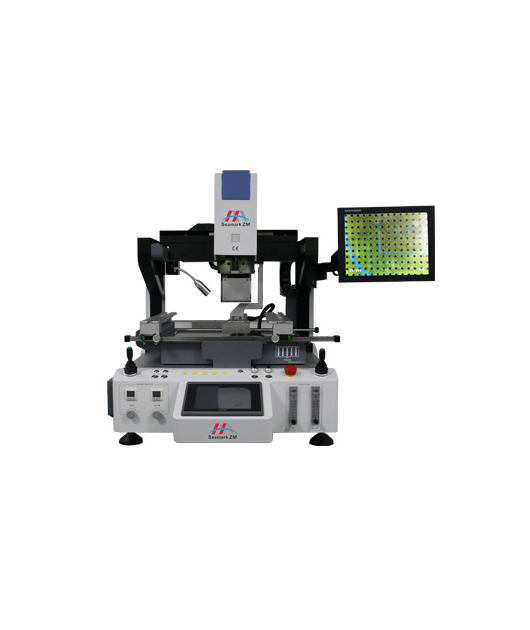

Power Supply: AC380V±10% 50/60HZ
Power: 7.15KW(Max), Top heater(1.45KW)
Bottom heater (1.2KW), IR Preheater (4KW), Other(0.5KW)
PCB Size: 565*467mm(Max); 6*6mm(Min)
BGA Chip Size: 80*80mm(Max); 2*2mm(Min)
IR Heater Size: 500*380mm
Motion Control: X/Y/Z
Temperature Sensor: 5 Pcs
Operation Method: 8" HD touch panel
Control System: Panasonic PLC + Temperature control module
Display System: 15" HD industrial display ( 1080P 16:9)
Alignment System: 2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator
Vacuum Adsorption: Automatic
Alignment Accuracy: ±0.01mm
Temperature Control: K-type thermocouple closed-loop control with accuracy up to ±1℃
Feeding Device: Yes
Positioning: V-groove with universal fixture
Dimensions: L810*W1100*H960mm
Weight: 151KG
