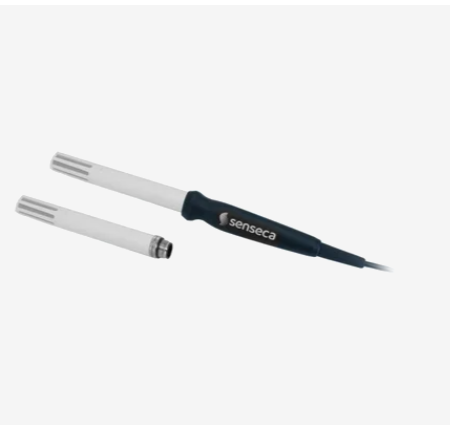

Senseca DX 311-L01-00 Digital humidity / temperature sensor (0 ... 100 %, -50 ... +160 ° C)

Accuracy:

RH: ± 1.2% (0…85%) / ±2% (85…100%) @ T=0…50 °C (1.5 + 1.5% of the measured value)% @ T=remaining range

Temperature: ± 0.1 °C ± 0.1% of the measured value

Calculated quantities: Dew point

Long-term drift

RH: ± 0.5 %RH/year

Temperature: ± 0.03 °C/year

Measuring range

RH: 0 ... 100 %

Temperature: -50 ... +160 °C

Output: UART (TTL 3.3V)

Power consumption: <1 mA typ.

Power supply:; 3.3…6 Vdc

Resolution:

RH: 0.01 %

Temperature: 0.01 °C

RH response time:; 10 s (10 ... 80 %RH; air speed=2 m/s @ constant temperature)

Sensor

RH: Capacitive

Temperature: Pt100

Connection: 4-pole M12

Accuracy for humidity: ±2.5 % r.h.

Accuracy temperature: ±0,5 °C

Cable: 1 m PVC cable, fixed

Calibration: Factory adjustment with test protocol

Measuring range air humidity: 0 ... 100 %

Measuring range temperature: -40 ... +120 °C

Scope of delivery: Device in carton box, incl. Quickstart

Version: Interchangeable without loss of accuracy

Working temperature: -25 ... +60 °C
