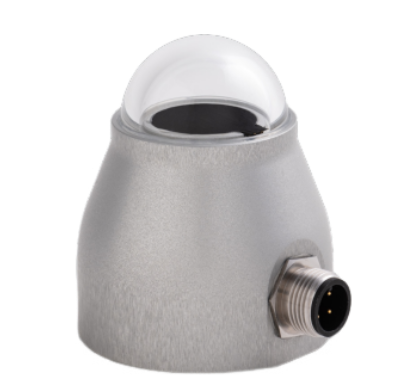

Senseca LPPYRA-LiteAC Pyranometer for Small-Scale PV Monitoring (0…2000 W/m2, 10…28 Vdc)
Manufacturer: Senseca Model: LPPYRA-LiteAC - Contact
Sensor: Thermopile
Typical Sensitivity: 5…15 μV/Wm-2 or normalized 7 μV/Wm-2
Measuring range: 0…2000 W/m2
Viewing angle: 2π sr
Spectral range (50%): 300…2800 nm
Output: 2-wire (current loop) 4…20 mA (RL ≤ 500 Ω)
Power supply: 10…28 Vdc
Consumption: equal to output signal (4…20 mA)
Connection: 4-pole M12
Weight: 150 g approx.
Operating conditions: -40…80 °C / 0…100 %RH
Protection Degree: IP 67
