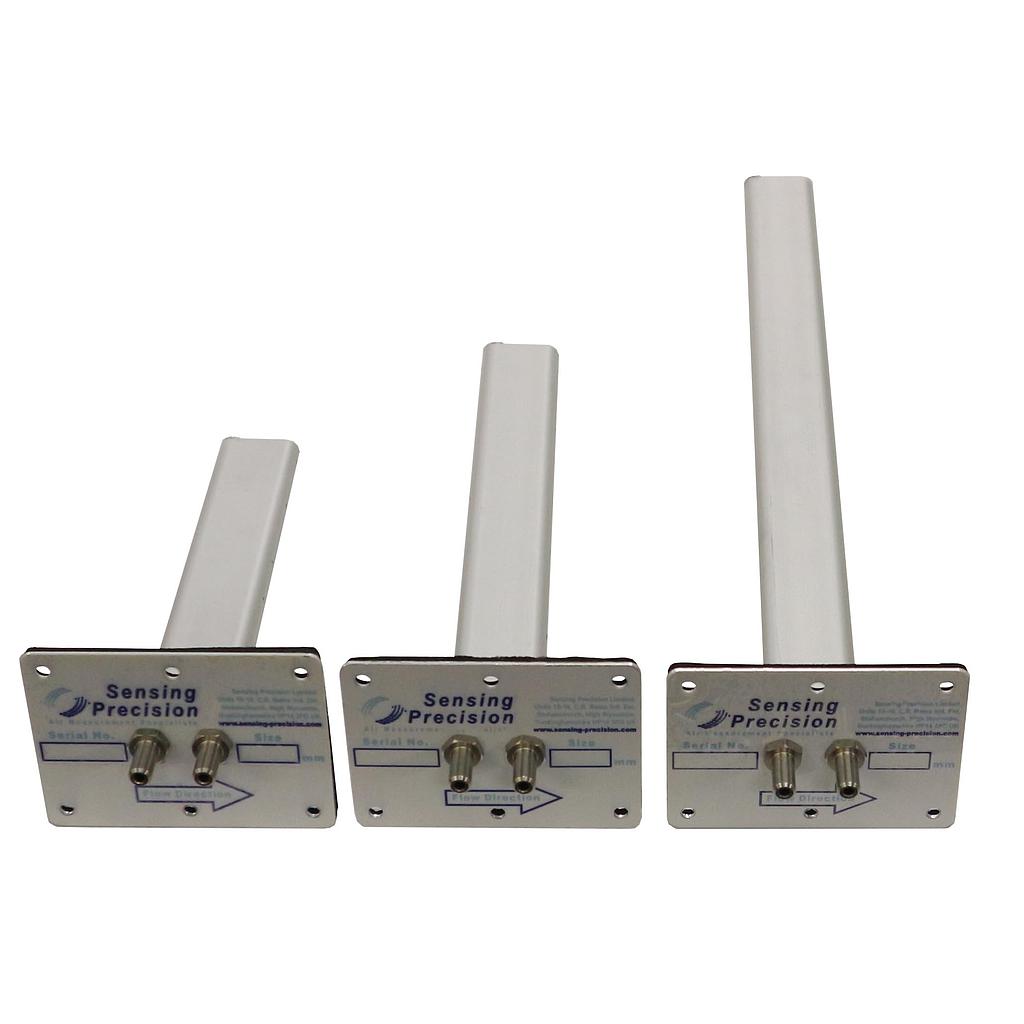

Sensing Precision Probes Eco Up/Down (U/D) Probes

Standard Sizes (Based upon nominal internal duct dimensions.): 100mm, 125mm, 150mm, 160mm, 200mm, 250mm, 300mm, 315mm, 350mm, 400mm, 415mm, 450mm, 500mm, 550mm, & 600mm

Uncertainty of Flow MeasurementDependent upon the installed arrangement.

Typically, between ±10.0 % and ±15%

Magnification Factor: Varies from 1.2 to 2.2 dependent on size, number of probes and duct aspect ratio. (On-site Calibration and Commissioning required)

Hole Pattern: Logarithmic

Recommended Average Velocity Range: Min 2.0m/s to Max 10.0m/s

Temperature: 80°C Max

Materials: Precision Aluminium body with Stainless steel fittings.

Also contains PVC, Acetal Polymer & Neoprene Gaskets.
